Data Center Physical Security Cameras: Layered Design Case Study
A data center physical security camera design should layer perimeter, entry, mantrap, loading, corridor, and equipment-area views with access control, network segmentation, time, evidence handling, and maintenance responsibility.
Updated 2026-09-01 · Industry case studies
- PURPOSE
- A data center may have a property boundary, vehicle approach, visitor entry, reception, mantrap, loading area, corridor, cage, or equipment zone. Each boundary asks a different question. A perimeter overview may show movement, while an entry detail view may support an authorized identity or badge-event review. Do not use the same camera role as a substitute for access-control decisions.
- CONDITIONS
- Map the camera to the event it must help reconstruct and to the system that owns the related evidence. Note lighting, reflective surfaces, doors, tailgating risk, service corridors, and privacy boundaries. The map should explain what is visible, what is intentionally excluded, and which blind spots require another control. Include cameras, NVR or VMS, access switches, management interfaces, operator workstations, time sources, update paths, cloud services, and support accounts in the asset and risk model. Separate camera, recording, management, and remote-support paths. Restrict direct internet exposure and make every exception attributable and reviewable.
- LIMITS
- This is a planning or editorial guide. It does not replace a site survey, current official source, legal review, or vendor acceptance test.

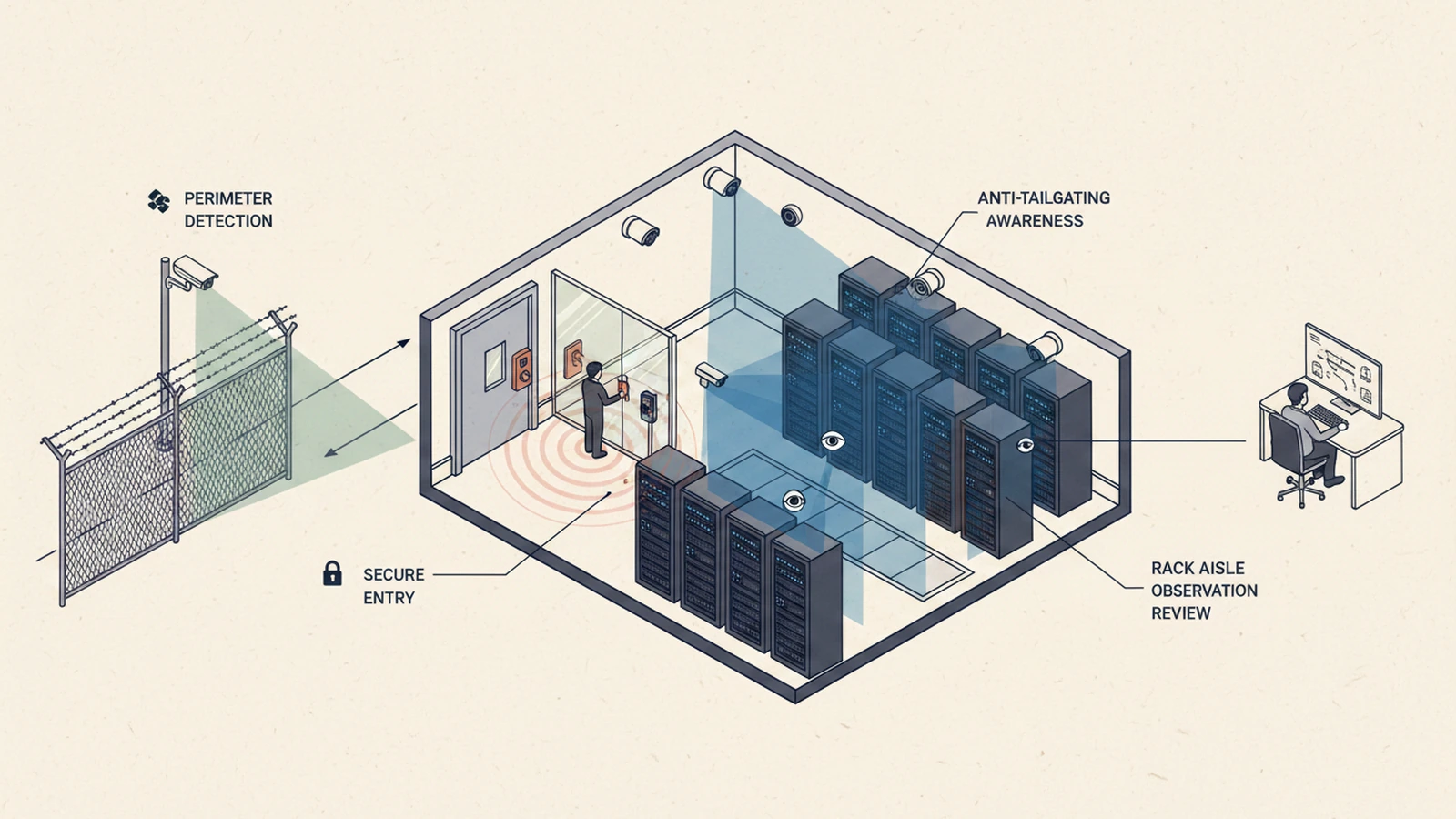

Assign a camera role to each security boundary
A data center may have a property boundary, vehicle approach, visitor entry, reception, mantrap, loading area, corridor, cage, or equipment zone. Each boundary asks a different question. A perimeter overview may show movement, while an entry detail view may support an authorized identity or badge-event review. Do not use the same camera role as a substitute for access-control decisions.
Map the camera to the event it must help reconstruct and to the system that owns the related evidence. Note lighting, reflective surfaces, doors, tailgating risk, service corridors, and privacy boundaries. The map should explain what is visible, what is intentionally excluded, and which blind spots require another control.
Protect the video system as critical infrastructure
Include cameras, NVR or VMS, access switches, management interfaces, operator workstations, time sources, update paths, cloud services, and support accounts in the asset and risk model. Separate camera, recording, management, and remote-support paths. Restrict direct internet exposure and make every exception attributable and reviewable.
Test availability and recovery conditions that matter to the facility: a network-path failure, recorder or storage issue, loss of remote access, power transition, clock drift, and a maintenance change. A camera view can support physical security without being the only control for a door, rack, or critical process.
Build an evidence chain for restricted areas
Acceptance should connect a camera view with badge or access events, time, recorded video, authorized reviewers, and export handling. Create test events at representative boundaries and compare the camera overlay, recorder index, access-control record, and exported clip. Record whether the view supports context, detail, or only an investigative lead.
Restrict video exports and administrative changes. Define maintenance windows, named support access, logging, revocation, retention, legal hold, and incident ownership. This approach makes the design auditable without publishing sensitive facility layout, camera coordinates, or network information.
FIELD CHECKLIST
Record the result, not only the intention
- Map perimeter, entry, mantrap, loading, corridor, and equipment-area camera roles.
- Link each view to the physical-security or access-control question it supports.
- Include cameras, VMS, switches, management, time, updates, cloud, and support in the risk model.
- Segment camera, recording, management, and remote-support paths and document exceptions.
- Test access events, video time, recording, export, outage, recovery, and revocation behavior.
- Keep facility coordinates, credentials, network details, and sensitive operational data out of public examples.
Sources to verify
- NIST Cybersecurity Framework 2.0
Use the current framework resources to organize governance, asset, protection, detection, response, and recovery questions.
- CISA network segmentation guidance
A practical reference for layering controls and limiting unnecessary paths between system zones.
- IEC 62676-1-1 official publication record
Use the official publication scope when converting video-surveillance requirements into project-specific tests.
- NIST Privacy Framework
A voluntary reference for identifying and managing privacy risk across the video-system lifecycle.
FAQ / LONG-TAIL QUESTIONS
Frequently asked questions
What should data center physical security cameras cover?
Cover the documented security boundaries and operational questions: perimeter context, vehicle or visitor approach, entry detail, mantrap or door events, loading, corridors, and restricted-area transitions. The exact roles depend on the facility risk assessment.
Can CCTV replace access control at a data center door?
No. Video can provide context, verification, or incident evidence, but it does not automatically authorize entry or prevent tailgating. Pair camera roles with access-control, guard, barrier, and operational procedures.
How should a data center CCTV system be segmented?
Define camera, recorder or VMS, management, operator, time, update, and remote-support zones, then document the required flows, owners, logging, and review dates. A VLAN alone does not prove that routing and support paths are restricted.
What is a useful data center CCTV acceptance test?
Run authorized test events at key boundaries and compare camera time, access-control events, recorder search, playback, export, user permissions, outage behavior, and recovery. Record the conditions and what each view cannot establish.
