CASE STUDY / LOGISTICS AND WAREHOUSING

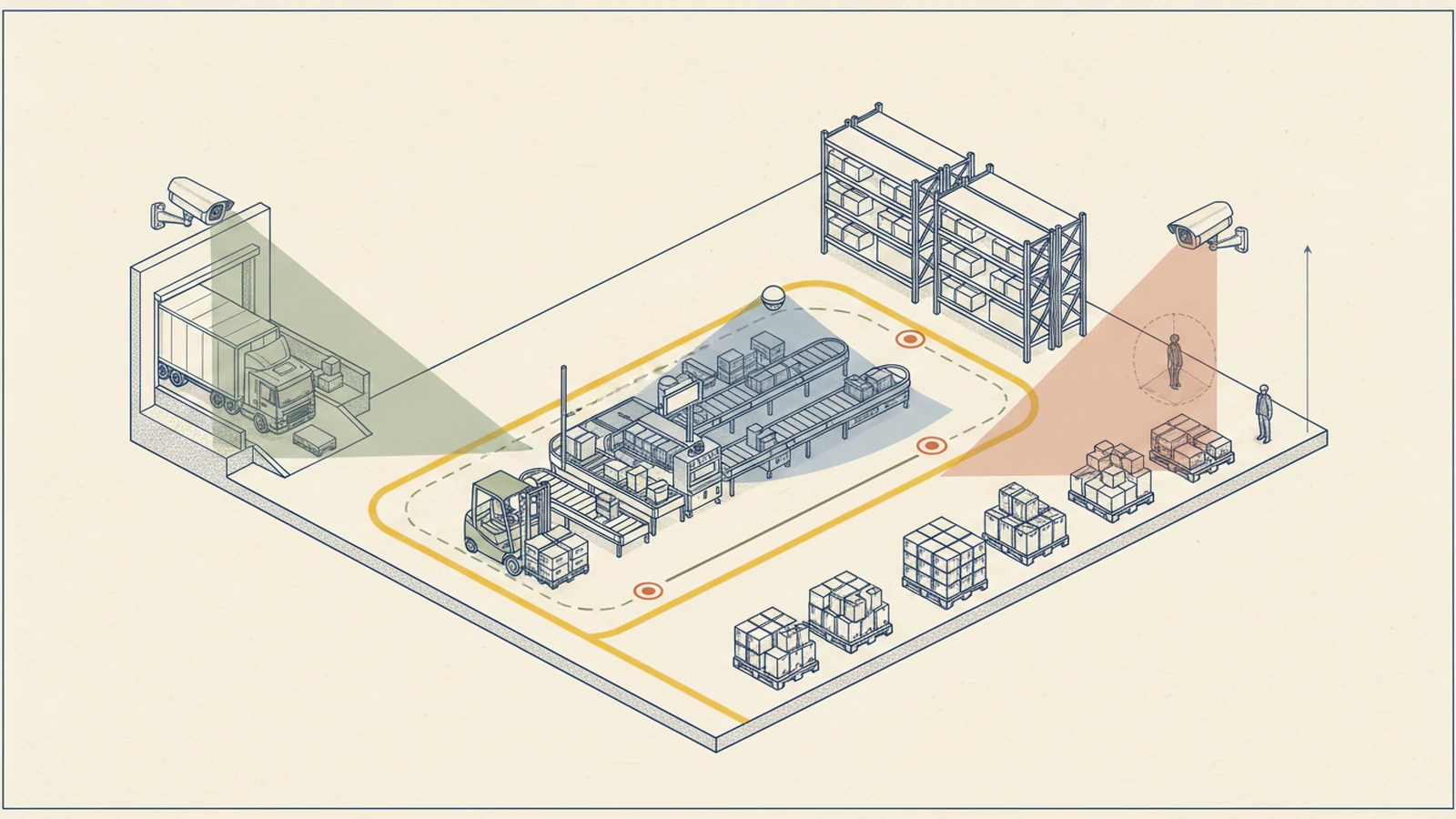

Warehouse Security Camera Design: Dock-to-Dispatch Evidence
A warehouse security camera design should follow the movement of goods and the evidence needed at receiving, staging, loading, and dispatch, while accounting for backlight, vehicle movement, network paths, retention, and access control.
Updated 2026-09-01 · Industry case studies
- PURPOSE
- A dock scene changes quickly: a vehicle arrives, a door opens, a pallet moves, a label is scanned, and a shipment leaves. A useful design identifies which transition matters and where the subject must be visible. Overview cameras can establish context, while detail views may be needed for a label, handoff, doorway, or operator action.
- CONDITIONS
- Write the evidence chain from arrival to dispatch. Note the target, travel direction, distance, expected speed, obstruction from trailers or equipment, and the time window that must be reconstructed. Do not promise that a camera can read a label or plate until the real scene and recorded result have been tested. Dock doors create difficult contrast between an outdoor sky or vehicle lights and a darker interior. Forklifts, pallets, rain, reflective wrapping, and changing door positions can alter the view. Test camera height, angle, shutter behavior, IR or supplemental light, and the location of the subject rather than relying on a daytime screenshot.
- LIMITS
- This is a planning or editorial guide. It does not replace a site survey, current official source, legal review, or vendor acceptance test.
Treat the dock as a sequence, not a single camera view
A dock scene changes quickly: a vehicle arrives, a door opens, a pallet moves, a label is scanned, and a shipment leaves. A useful design identifies which transition matters and where the subject must be visible. Overview cameras can establish context, while detail views may be needed for a label, handoff, doorway, or operator action.
Write the evidence chain from arrival to dispatch. Note the target, travel direction, distance, expected speed, obstruction from trailers or equipment, and the time window that must be reconstructed. Do not promise that a camera can read a label or plate until the real scene and recorded result have been tested.
Design for movement, light, and working conditions
Dock doors create difficult contrast between an outdoor sky or vehicle lights and a darker interior. Forklifts, pallets, rain, reflective wrapping, and changing door positions can alter the view. Test camera height, angle, shutter behavior, IR or supplemental light, and the location of the subject rather than relying on a daytime screenshot.
The network and recorder plan should include cameras, access switches, uplinks, NVR or VMS, operator stations, time, maintenance, and approved remote support. Record which paths are required and which are denied. A warehouse camera should not depend on an undocumented connection through a general office or guest network.
Make the evidence retrievable and reviewable
Acceptance should include a timed test at receiving and dispatch, a representative vehicle or pallet movement, recorded playback, search, export, and a comparison of camera overlay, recorder index, and event time. Check that the system keeps useful context before and after the handoff instead of only a narrow alert clip.
Define who may view, export, or share a clip and how an incident hold changes ordinary deletion. Keep the export reference, handler, time, purpose, and destination. The case study is a planning model, not a claim about a specific warehouse, carrier, camera, or loss event.
FIELD CHECKLIST
Record the result, not only the intention
- Map receiving, staging, loading, dispatch, and vehicle movement as separate evidence tasks.
- Record target distance, movement, door position, obstruction, weather, and lighting conditions.
- Separate overview context from detail views for labels, handoffs, doors, or operators.
- Document camera, switch, uplink, recorder, time, maintenance, and remote-support paths.
- Test recorded playback, search, export, timestamps, access roles, and incident holds.
- Record what the video cannot establish and who owns the follow-up review.
Sources to verify
- IEC 62676-1-1 official publication record
Use the official publication scope when converting video-surveillance requirements into project-specific tests.
- CISA network segmentation guidance
A practical reference for layering controls and limiting unnecessary paths between system zones.
- NIST Cybersecurity Framework 2.0
Use the current framework resources to organize governance, asset, protection, detection, response, and recovery questions.
- NIST Privacy Framework
A voluntary reference for identifying and managing privacy risk across the video-system lifecycle.
FAQ / LONG-TAIL QUESTIONS
Frequently asked questions
What is the best camera position for a warehouse dock?
The position depends on the evidence task, target distance, movement direction, door geometry, lighting, weather, and obstruction. Start with the handoff or transition that must be reconstructed, then test the view at the actual dock rather than choosing from a height or lens label alone.
Can warehouse CCTV read pallet labels or license plates?
It may be possible for a defined distance and scene, but readability depends on angle, pixels on target, motion, light, focus, compression, and the recorded stream. Require a site-specific test and preserve its conditions before making a requirement claim.
How long should warehouse video be retained?
Retention should follow the documented purpose, operational process, legal or incident requirements, storage capacity, access rules, and deletion behavior. There is no universal number that proves a warehouse system is adequate.
What should a dock-camera acceptance test include?
Include receiving and dispatch movements, door and vehicle conditions, difficult light, recorded playback, search, export, time alignment, user roles, storage behavior, and the evidence limits for labels, people, and vehicles.
