Video Compression and Bitrate for IP Cameras: Scene and Storage Guide
A video compression bitrate guide explains how scene movement, light, noise, frame rate, GOP, codec, quality settings, storage, and network headroom change an IP camera recording plan.
Updated 2026-09-01 · Technology
- PURPOSE
- A quiet scene and a busy or noisy scene do not create the same amount of video information. Movement, fine texture, low-light noise, rain, foliage, headlights, frame rate, resolution, GOP, codec, and quality control all affect bitrate and the storage or network resources needed to preserve a useful recording.
- CONDITIONS
- For video compression bitrate, write the scene purpose, target, distance, movement, lighting, obstruction, access boundary, and evidence limit before selecting a camera or changing a configuration. The same label can describe very different operating conditions. Separate the image requirement from the capacity estimate. Record the scenes that need detail, their peak movement and low-light conditions, the stream used for recording and remote viewing, the codec and frame assumptions, storage headroom, uplink capacity, export behavior, and what quality loss is acceptable. Use averages for planning but retain peak and observed conditions.
- LIMITS
- This is a planning or editorial guide. It does not replace a site survey, current official source, legal review, or vendor acceptance test.

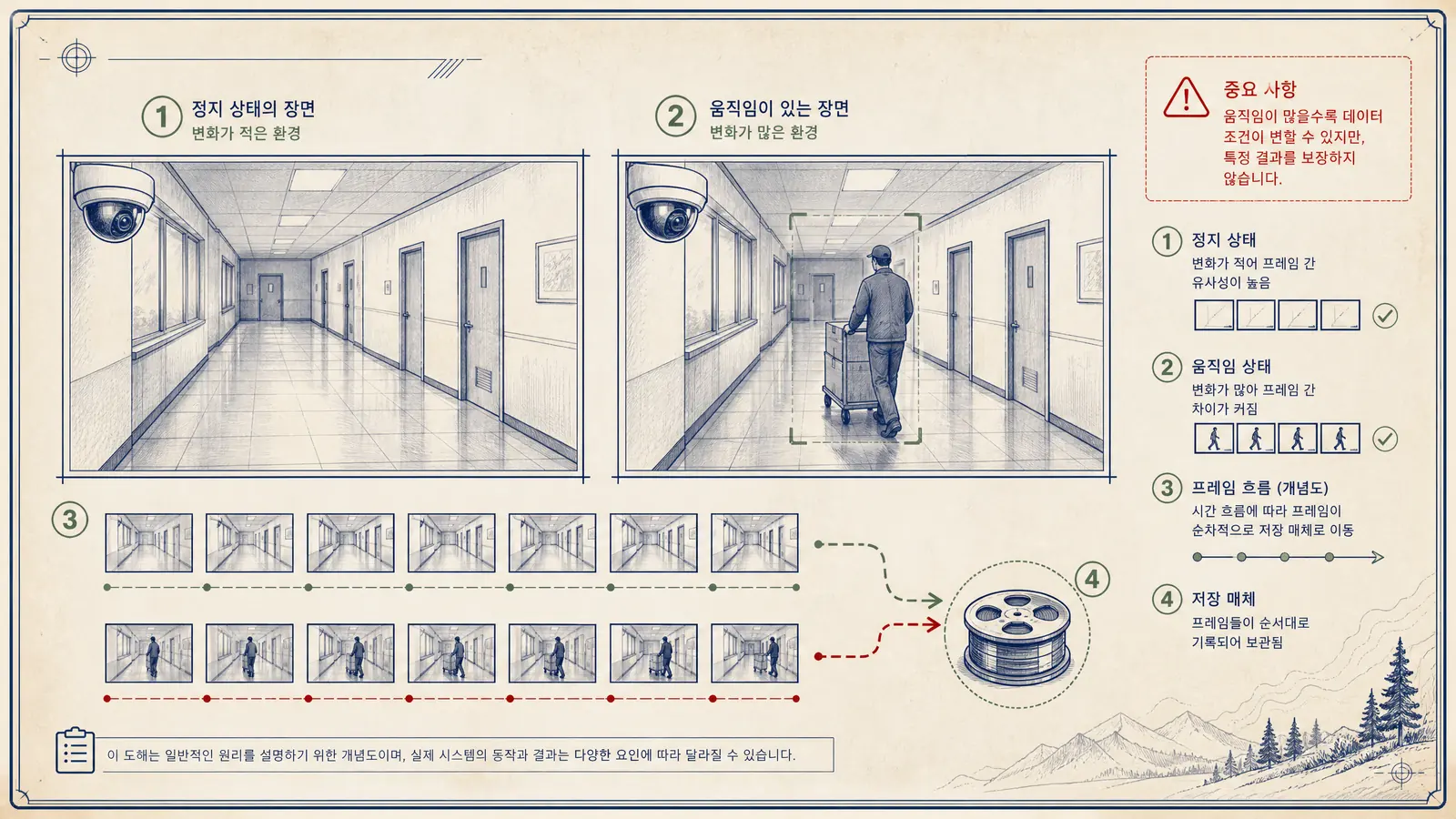

The scene changes the stream
A quiet scene and a busy or noisy scene do not create the same amount of video information. Movement, fine texture, low-light noise, rain, foliage, headlights, frame rate, resolution, GOP, codec, and quality control all affect bitrate and the storage or network resources needed to preserve a useful recording.
For video compression bitrate, write the scene purpose, target, distance, movement, lighting, obstruction, access boundary, and evidence limit before selecting a camera or changing a configuration. The same label can describe very different operating conditions.
Protect the task before optimizing the number
Separate the image requirement from the capacity estimate. Record the scenes that need detail, their peak movement and low-light conditions, the stream used for recording and remote viewing, the codec and frame assumptions, storage headroom, uplink capacity, export behavior, and what quality loss is acceptable. Use averages for planning but retain peak and observed conditions.
Keep the camera role connected to the network, power, recording, time, privacy, and maintenance path. A useful design explains what is intentionally included, what is masked or excluded, who owns the decision, and what failure would be visible to an operator.
Compare streams after recording and export
Test static, busy, low-light, and moving scenes with the intended settings. Compare target detail, motion, artifacts, frame continuity, bitrate or storage behavior, live view, recorded playback, search, and exported files. Recheck after changing quality, codec, GOP, frame, analytics, or scene lighting.
Record the observed condition, date, device or configuration reference, reviewer, unresolved limitation, and next action. A repeatable acceptance record is more useful than a generic promise that a camera, recorder, service, or analytic will work in every scene.
FIELD CHECKLIST
Record the result, not only the intention
- Record movement, texture, light, noise, rain, headlights, resolution, frame, GOP, and codec assumptions.
- Separate recording, remote-view, analytics, export, storage, network, and evidence-quality requirements.
- Use average and peak conditions with documented headroom instead of a single nominal bitrate.
- Compare live, recorded, searched, and exported detail after compression settings are applied.
- Retest after scene, firmware, codec, frame, GOP, quality, or lighting changes.
Sources to verify
- Axis Communications, Bitrate control for IP video
First-party technical background for scene movement, bitrate, quality, storage, and network trade-offs.
- IEC 62676-1-1 official publication record
Use the official publication scope when converting video-surveillance requirements into project-specific tests.
FAQ / LONG-TAIL QUESTIONS
Frequently asked questions
What affects IP camera bitrate?
Scene movement, texture, light, noise, weather, resolution, frame rate, GOP, codec, quality control, analytics, and camera settings can all affect bitrate. Capacity planning should state the assumptions and headroom.
Does H.265 always reduce CCTV storage without a trade-off?
A codec can change compression efficiency, but the result depends on scene, settings, device, client, recording compatibility, and required quality. Compare actual recorded and exported evidence instead of assuming a fixed saving.
Why does a quiet camera suddenly use more storage?
Movement, noise, rain, foliage, lighting changes, analytics, settings, or a changed scene can increase encoded information. Check observed bitrate and the condition at that time before changing quality.
