Lens and Image Sensor: Why the Same Focal Length Changes the Camera View
A lens and image sensor guide explains why the same focal length can produce a different camera view, target size, light response, and usable detail when sensor, distance, aperture, and scene conditions change.
Updated 2026-09-01 · Technology
- PURPOSE
- Focal length is one optical condition. The sensor's active dimensions, target distance, mounting angle, aperture, focus, light, and movement determine how much of the scene reaches the image and how large the target appears. A wide view can preserve context while distributing fewer pixels over a distant target; a narrow view can preserve detail but lose movement outside the axis.
- CONDITIONS
- For lens and image sensor, write the scene purpose, target, distance, movement, lighting, obstruction, access boundary, and evidence limit before selecting a camera or changing a configuration. The same label can describe very different operating conditions. Record the target distance and the amount of the frame the target must occupy, then check sensor size, focal length, aperture, focus range, height, angle, and day or night light. Use a field-of-view calculator as a geometry starting point and keep distortion, crop mode, focus, obstruction, and privacy masks in the field test.
- LIMITS
- This is a planning or editorial guide. It does not replace a site survey, current official source, legal review, or vendor acceptance test.

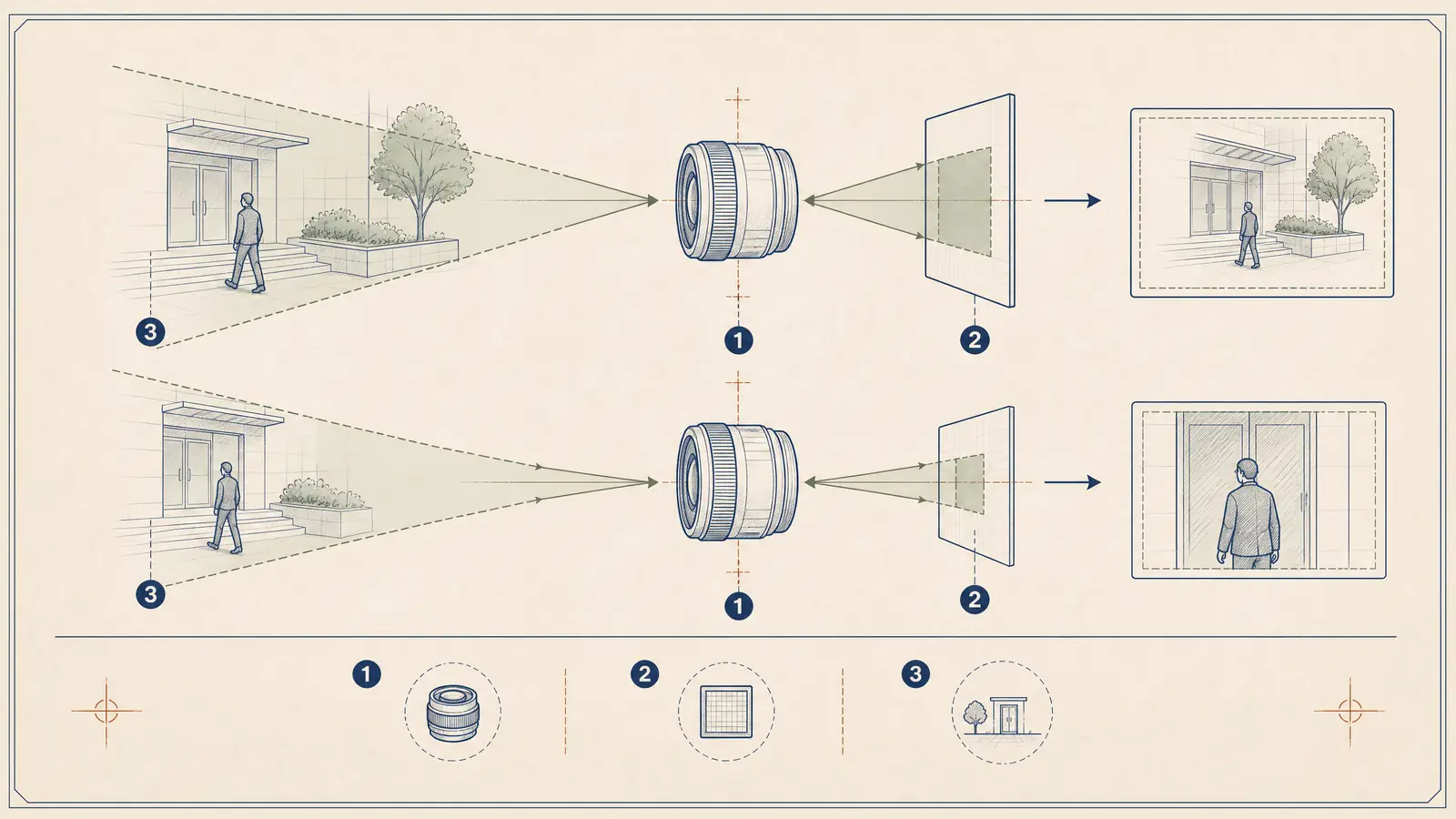

A focal-length number is not a complete scene
Focal length is one optical condition. The sensor's active dimensions, target distance, mounting angle, aperture, focus, light, and movement determine how much of the scene reaches the image and how large the target appears. A wide view can preserve context while distributing fewer pixels over a distant target; a narrow view can preserve detail but lose movement outside the axis.
For lens and image sensor, write the scene purpose, target, distance, movement, lighting, obstruction, access boundary, and evidence limit before selecting a camera or changing a configuration. The same label can describe very different operating conditions.
Choose the optical relationship, not an isolated mm
Record the target distance and the amount of the frame the target must occupy, then check sensor size, focal length, aperture, focus range, height, angle, and day or night light. Use a field-of-view calculator as a geometry starting point and keep distortion, crop mode, focus, obstruction, and privacy masks in the field test.
Keep the camera role connected to the network, power, recording, time, privacy, and maintenance path. A useful design explains what is intentionally included, what is masked or excluded, who owns the decision, and what failure would be visible to an operator.
Compare a target at the real distance
Use a representative target at the actual working distance and approach direction. Check day, dusk, night, glare, motion, focus, edge distortion, recorded compression, and the difference between context coverage and detail coverage. Record the exact camera, lens, sensor mode, and scene condition.
Record the observed condition, date, device or configuration reference, reviewer, unresolved limitation, and next action. A repeatable acceptance record is more useful than a generic promise that a camera, recorder, service, or analytic will work in every scene.
FIELD CHECKLIST
Record the result, not only the intention
- Record target distance, required target size, approach direction, and context or detail task.
- Review focal length, active sensor dimensions, aperture, focus, mounting height, and angle together.
- Use geometry calculations as estimates and preserve assumptions for the site test.
- Test light, movement, glare, distortion, crop, focus, compression, and privacy boundaries.
- Keep the lens, sensor mode, target, and observed result in the acceptance record.
Sources to verify
- Axis Communications, Lenses in surveillance
First-party technical background for interpreting lens, sensor, field-of-view, and scene conditions.
- IEC 62676-1-1 official publication record
Use the official publication scope when converting video-surveillance requirements into project-specific tests.
FAQ / LONG-TAIL QUESTIONS
Frequently asked questions
Does the same focal length give the same field of view on every camera?
No. Sensor dimensions and image mode affect the view, and installation distance, crop, aspect ratio, and lens behavior also matter. Compare the actual camera and lens combination.
Is a wider security camera lens always better?
A wider lens can provide context but may reduce target size and detail at distance. A narrower lens can focus detail but reduce surrounding coverage. Choose from the scene task and test the result.
What should be tested after choosing a CCTV lens?
Test target size, distance, angle, focus, day and night light, motion, glare, distortion, recorded playback, search, export, privacy masks, and any changed scene condition.
