CASE STUDY / PARKING AND LICENSE-PLATE REVIEW

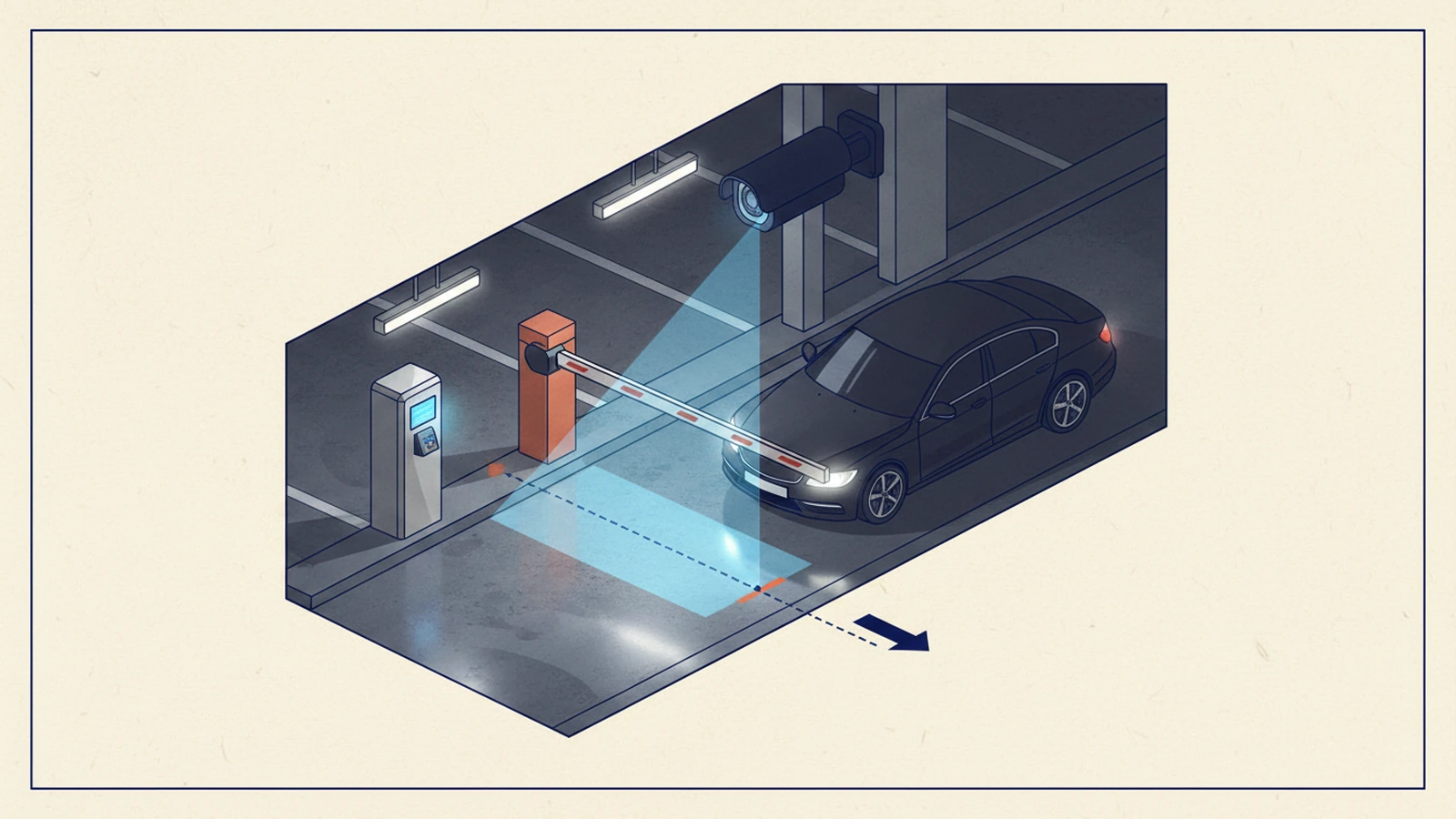

Parking Lot LPR Camera System: Lane and Plate-Reading Case Study
A parking lot LPR camera system should be designed around lane geometry, plate orientation, speed, lighting, weather, data handling, and an authorized review workflow—not around an analytics label alone.
Updated 2026-09-01 · Industry case studies
- PURPOSE
- License-plate recognition is a focused image task. State whether the system is meant to support entry logging, exit reconciliation, authorized-list review, payment operations, or an incident investigation. The lane, direction, target zone, expected speed, plate format, and acceptable result must be written before choosing a camera or analytic.
- CONDITIONS
- Keep overview coverage separate from the plate-detail role when one view cannot reliably provide both. A wide scene may show a vehicle entering the property, while a detail view is evaluated at the point where the plate passes. Neither view automatically proves vehicle ownership, driver identity, or unlawful behavior. A parking entrance can include headlights, reflective plates, shadows, rain, a steep approach angle, a raised barrier, and vehicles moving at different speeds. Test the camera at the actual mounting position and during the conditions that create the hardest result. Compare plate region detail, glare, blur, missed reads, false reads, and the behavior of the recorded stream.
- LIMITS
- This is a planning or editorial guide. It does not replace a site survey, current official source, legal review, or vendor acceptance test.
Define the plate-reading task and its boundary
License-plate recognition is a focused image task. State whether the system is meant to support entry logging, exit reconciliation, authorized-list review, payment operations, or an incident investigation. The lane, direction, target zone, expected speed, plate format, and acceptable result must be written before choosing a camera or analytic.
Keep overview coverage separate from the plate-detail role when one view cannot reliably provide both. A wide scene may show a vehicle entering the property, while a detail view is evaluated at the point where the plate passes. Neither view automatically proves vehicle ownership, driver identity, or unlawful behavior.
Test geometry, light, and motion at the lane
A parking entrance can include headlights, reflective plates, shadows, rain, a steep approach angle, a raised barrier, and vehicles moving at different speeds. Test the camera at the actual mounting position and during the conditions that create the hardest result. Compare plate region detail, glare, blur, missed reads, false reads, and the behavior of the recorded stream.
Network and system design also matter. Document camera-to-VMS paths, edge or server analytics, time, access, retention, export, and approved remote support. Confirm the exact product and firmware behavior for events and metadata; an ONVIF or analytics claim is not a substitute for a lane acceptance test.
Treat plate data as controlled information
Plate data can be linked to a time, location, account, visitor, employee, or vehicle. Define the purpose, notice or other applicable transparency, authorized users, search and export permissions, retention, deletion, incident hold, and supplier access for the relevant jurisdiction. Minimize collection outside the lane and avoid copying results into uncontrolled spreadsheets or messages.
An acceptance record should state the conditions, sample traffic, observed reads and misses, camera and firmware reference, reviewer, and unresolved limits. Keep marketing performance statements separate from the result observed at the site.
FIELD CHECKLIST
Record the result, not only the intention
- State the LPR purpose, lane, direction, target zone, speed, and acceptable review result.
- Separate overview, barrier, vehicle context, and plate-detail camera roles.
- Test headlights, reflective plates, rain, shadows, approach angle, speed, and recorded video.
- Verify analytic events, metadata, time, search, export, access, and retention behavior.
- Define purpose, transparency, privacy minimization, authorized users, deletion, and incident hold.
- Record observed reads, misses, false reads, test conditions, and evidence limits.
Sources to verify
- IEC 62676-1-1 official publication record
Use the official publication scope when converting video-surveillance requirements into project-specific tests.
- NIST Privacy Framework
A voluntary reference for identifying and managing privacy risk across the video-system lifecycle.
- ONVIF profiles and specifications
Confirm the exact profile, product, and firmware or software version rather than relying on a generic compatibility label.
- NIST SP 800-213 IoT device cybersecurity guidance
Use this procurement and lifecycle reference when evaluating connected cameras and related devices.
FAQ / LONG-TAIL QUESTIONS
Frequently asked questions
What is needed for a reliable parking lot LPR camera system?
Begin with a defined lane and plate-reading task, then test camera angle, distance, pixels on the plate, speed, lighting, weather, barrier geometry, focus, exposure, analytics, recording, and data workflow at the actual site.
Can one parking camera provide both overview and license-plate recognition?
Sometimes, but the two tasks can require different framing and detail. Use separate roles when a wide view cannot preserve the plate region under the difficult condition, and document the blind spots of each role.
Is license-plate recognition automatically legal?
No. Requirements depend on purpose, organization, jurisdiction, notice, retention, access, and applicable privacy or surveillance rules. Obtain the responsible privacy or legal review before deployment.
Should an LPR vendor guarantee a read rate?
Treat a stated rate as a claim that needs scope and test conditions. Ask for the exact product, firmware, lane, lighting, speed, plate population, recorded-stream method, false-read handling, and a site acceptance process.
