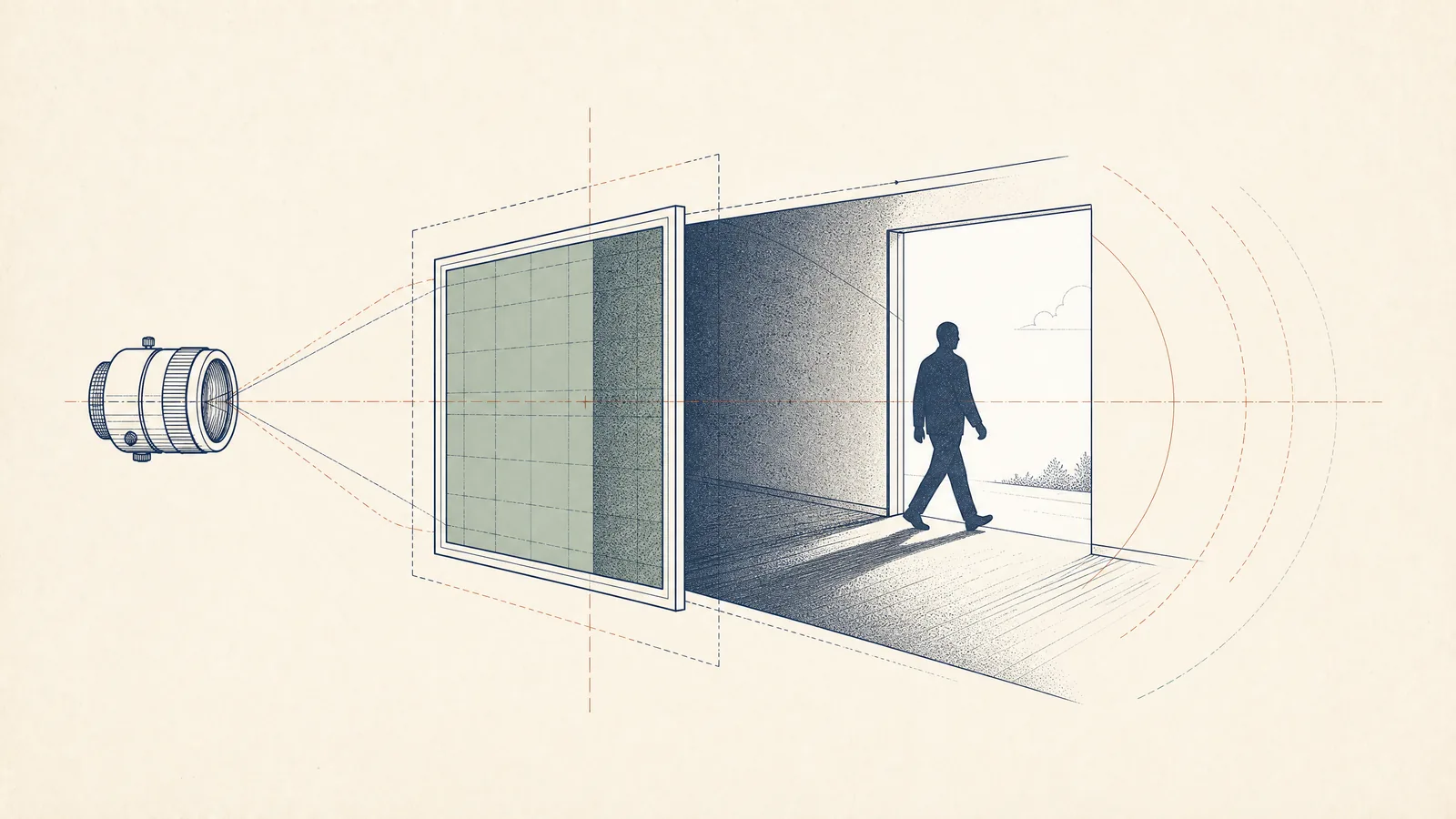

Low-Light and Backlight CCTV Design: What to Check
Low-light and backlight CCTV design requires a scene test that combines sensor noise, shutter, WDR behavior, IR reflection, subject movement, and exposure—not resolution alone.
Updated 2026-08-31 · CCTV design
- PURPOSE
- Low light can increase noise and motion blur. Backlight can darken the subject while the background remains bright. IR can reflect from glass, dust, rain, or a nearby wall. Each failure needs a different change in position, light, lens, exposure, or scene control.
- CONDITIONS
- Choose a target at the real distance and record a short clip during the difficult period. Compare face or object detail, highlight clipping, shadow detail, color shift, motion blur, and the effect of WDR or IR settings. Avoid treating a manufacturer sample image as a site result. The lens, angle, scene reflectance, firmware, bitrate, and lighting installation all change the outcome.
- LIMITS
- This is a planning or editorial guide. It does not replace a site survey, current official source, legal review, or vendor acceptance test.
Separate the problems
Low light can increase noise and motion blur. Backlight can darken the subject while the background remains bright. IR can reflect from glass, dust, rain, or a nearby wall. Each failure needs a different change in position, light, lens, exposure, or scene control.
Use a repeatable test
Choose a target at the real distance and record a short clip during the difficult period. Compare face or object detail, highlight clipping, shadow detail, color shift, motion blur, and the effect of WDR or IR settings.
Avoid treating a manufacturer sample image as a site result. The lens, angle, scene reflectance, firmware, bitrate, and lighting installation all change the outcome.
Design the scene when possible
A small change in camera position, a controlled light source, a matte background, or a different approach angle may be more reliable than aggressive image processing.
FIELD CHECKLIST
Record the result, not only the intention
- Identify the brightest and darkest parts of the target scene.
- Test the real target at the real distance and movement speed.
- Compare WDR, exposure, shutter, gain, IR, and reflection conditions.
- Check the result after compression and playback, not only live view.
- Record the setting, firmware, time, and test clip reference.
FAQ / LONG-TAIL QUESTIONS
Frequently asked questions
How do you test a CCTV camera in low light?
Test the actual target at the actual distance during the difficult lighting period. Compare live and recorded detail, motion blur, shadow noise, highlight clipping, IR reflection, and the result after playback or export.
What should be checked for WDR and IR?
Check subject detail against bright backgrounds, exposure transitions, shutter behavior, gain, IR reflection from glass or walls, movement, and whether the selected setting creates usable recorded evidence.
Does higher resolution solve low-light CCTV problems?
Not by itself. Position, controlled lighting, lens choice, shutter, sensor behavior, WDR, IR, bitrate, and subject movement can matter more than the resolution label.
