DESIGN / MULTIPLE ENTRANCES
Multi-Entrance Security Camera Layout: Assign Roles and Continuity
A multi-entrance security camera layout should assign front, side, interior, and context roles to each approach while accounting for overlap, blind spots, light, access events, network, and review workflow.
Updated 2026-09-01 · CCTV design
- PURPOSE
- Multiple entrances create more than a camera-count problem. A front door, side door, delivery door, and emergency exit can have different approach directions, lighting, door behavior, user groups, and evidence questions. Assign each entrance a context, threshold, detail, or interior-flow role and state how the views connect during a review.
- CONDITIONS
- For multi-entrance security camera layout, write the scene purpose, target, distance, movement, lighting, obstruction, access boundary, and evidence limit before selecting a camera or changing a configuration. The same label can describe very different operating conditions. Map approach, threshold, door swing, nearby windows, access-control event, corridor, and outside boundary. Check whether a person can move between views without a useful handoff, whether a PTZ would leave a gap, and whether privacy or neighboring property constrains the view. Align camera time and recorder search so a reviewer can follow a defined event window.
- LIMITS
- This is a planning or editorial guide. It does not replace a site survey, current official source, legal review, or vendor acceptance test.

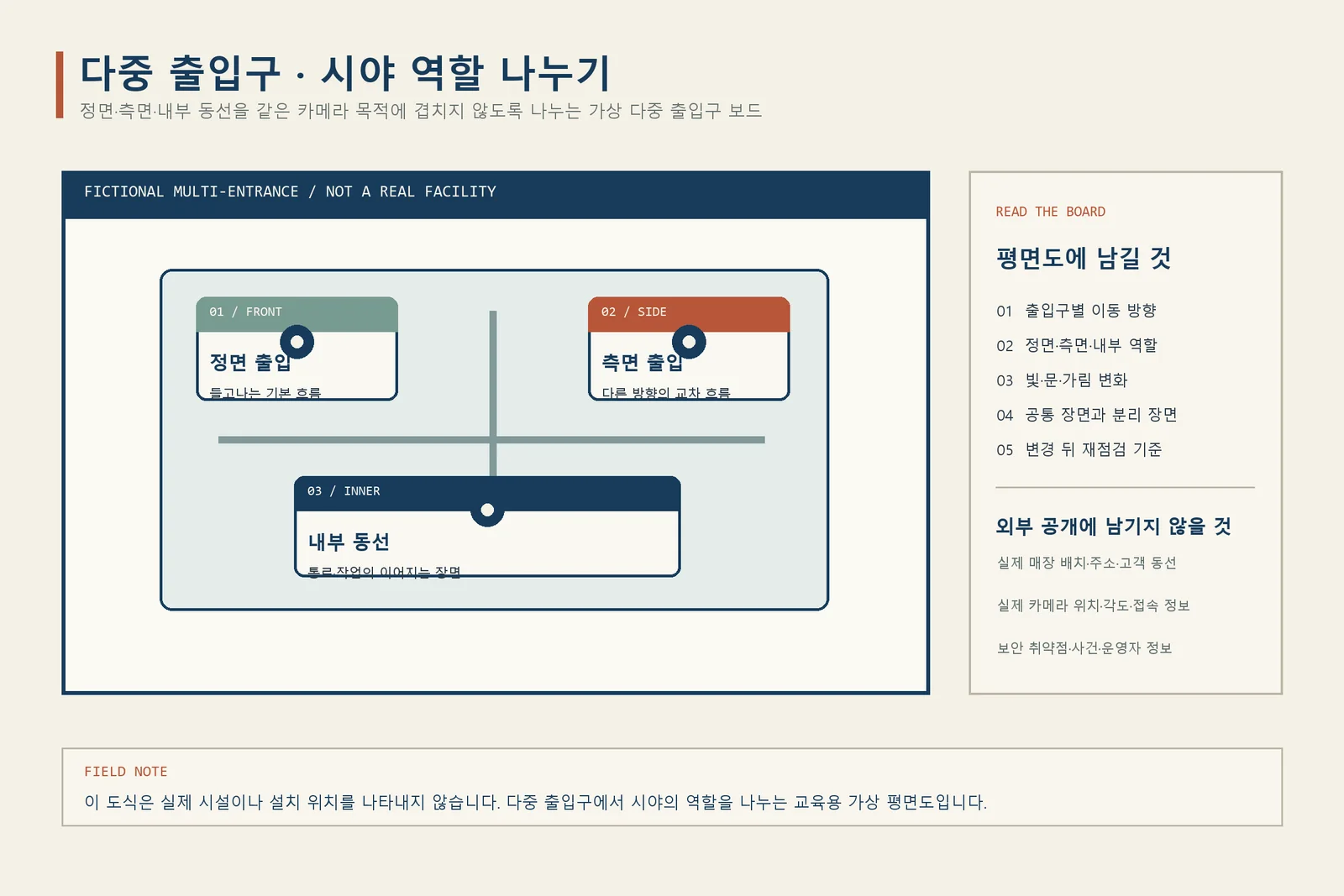

Give each entrance a role before adding overlap
Multiple entrances create more than a camera-count problem. A front door, side door, delivery door, and emergency exit can have different approach directions, lighting, door behavior, user groups, and evidence questions. Assign each entrance a context, threshold, detail, or interior-flow role and state how the views connect during a review.
For multi-entrance security camera layout, write the scene purpose, target, distance, movement, lighting, obstruction, access boundary, and evidence limit before selecting a camera or changing a configuration. The same label can describe very different operating conditions.
Design continuity without pretending every view overlaps
Map approach, threshold, door swing, nearby windows, access-control event, corridor, and outside boundary. Check whether a person can move between views without a useful handoff, whether a PTZ would leave a gap, and whether privacy or neighboring property constrains the view. Align camera time and recorder search so a reviewer can follow a defined event window.
Keep the camera role connected to the network, power, recording, time, privacy, and maintenance path. A useful design explains what is intentionally included, what is masked or excluded, who owns the decision, and what failure would be visible to an operator.
Walk every route in both directions
Test arrivals and exits at each entrance, including delivery movement, propped doors, tailgating scenarios where authorized, evening light, rain, and an entrance that is not the primary path. Review recorded continuity, timestamps, search, access roles, exports, and blind spots; record which questions remain unanswered.
Record the observed condition, date, device or configuration reference, reviewer, unresolved limitation, and next action. A repeatable acceptance record is more useful than a generic promise that a camera, recorder, service, or analytic will work in every scene.
FIELD CHECKLIST
Record the result, not only the intention
- List every entrance, approach direction, door behavior, user group, and evidence question.
- Assign context, threshold, detail, interior-flow, and access-event roles explicitly.
- Map overlap, handoff, blind spots, PTZ-away conditions, light, privacy, and neighboring property.
- Align time, recorder search, access events, export rules, and reviewer responsibilities.
- Walk routes in both directions and record continuity, gaps, and follow-up ownership.
Sources to verify
- IEC 62676-1-1 official publication record
Use the official publication scope when converting video-surveillance requirements into project-specific tests.
- NIST Privacy Framework
A voluntary reference for identifying and managing privacy risk across the video-system lifecycle.
FAQ / LONG-TAIL QUESTIONS
Frequently asked questions
How many cameras are needed for a building with multiple entrances?
Count the scene tasks at each entrance, not only the number of doors. Consider approach, threshold, interior flow, access events, detail, lighting, overlap, privacy, and the recorded review path.
Should each entrance have its own security camera?
Often each entrance needs a defined view, but the role may be context, threshold, detail, or an adjacent handoff. Confirm whether an existing camera truly preserves the required target and condition before treating it as coverage.
Can one PTZ cover multiple entrances?
A PTZ can investigate a selected direction, but it cannot continuously observe every direction at once. Pair it with fixed views when continuity or simultaneous coverage matters and test the return and blind-spot behavior.
