DESIGN / ENTRANCE LIGHTING
Entrance Security Camera Backlight: Door, Glass and Lighting Design
Entrance security camera backlight planning should account for door direction, outdoor brightness, indoor darkness, opening movement, reflections, and the recorded identification task.
Updated 2026-09-01 · CCTV design
- PURPOSE
- An entrance camera may need to establish approach direction, a person crossing a threshold, a transaction or badge event, or a broader visitor flow. A bright exterior behind an inward-looking camera can make the subject dark, while an outward-looking camera can lose indoor context. Define the scene task and the point where the result is judged before choosing WDR, lens, or resolution.
- CONDITIONS
- For entrance security camera backlight, write the scene purpose, target, distance, movement, lighting, obstruction, access boundary, and evidence limit before selecting a camera or changing a configuration. The same label can describe very different operating conditions. Map the door swing, glass, transom, canopy, daylight path, artificial lights, reflective floor, and the position of a person while the door opens. Consider a separate overview and detail role when one view cannot preserve both context and target detail. Include privacy masks, neighboring property, and access-control event timing in the same design record.
- LIMITS
- This is a planning or editorial guide. It does not replace a site survey, current official source, legal review, or vendor acceptance test.
Define what the entrance view must establish
An entrance camera may need to establish approach direction, a person crossing a threshold, a transaction or badge event, or a broader visitor flow. A bright exterior behind an inward-looking camera can make the subject dark, while an outward-looking camera can lose indoor context. Define the scene task and the point where the result is judged before choosing WDR, lens, or resolution.
For entrance security camera backlight, write the scene purpose, target, distance, movement, lighting, obstruction, access boundary, and evidence limit before selecting a camera or changing a configuration. The same label can describe very different operating conditions.
Control direction, light, and movement as one problem

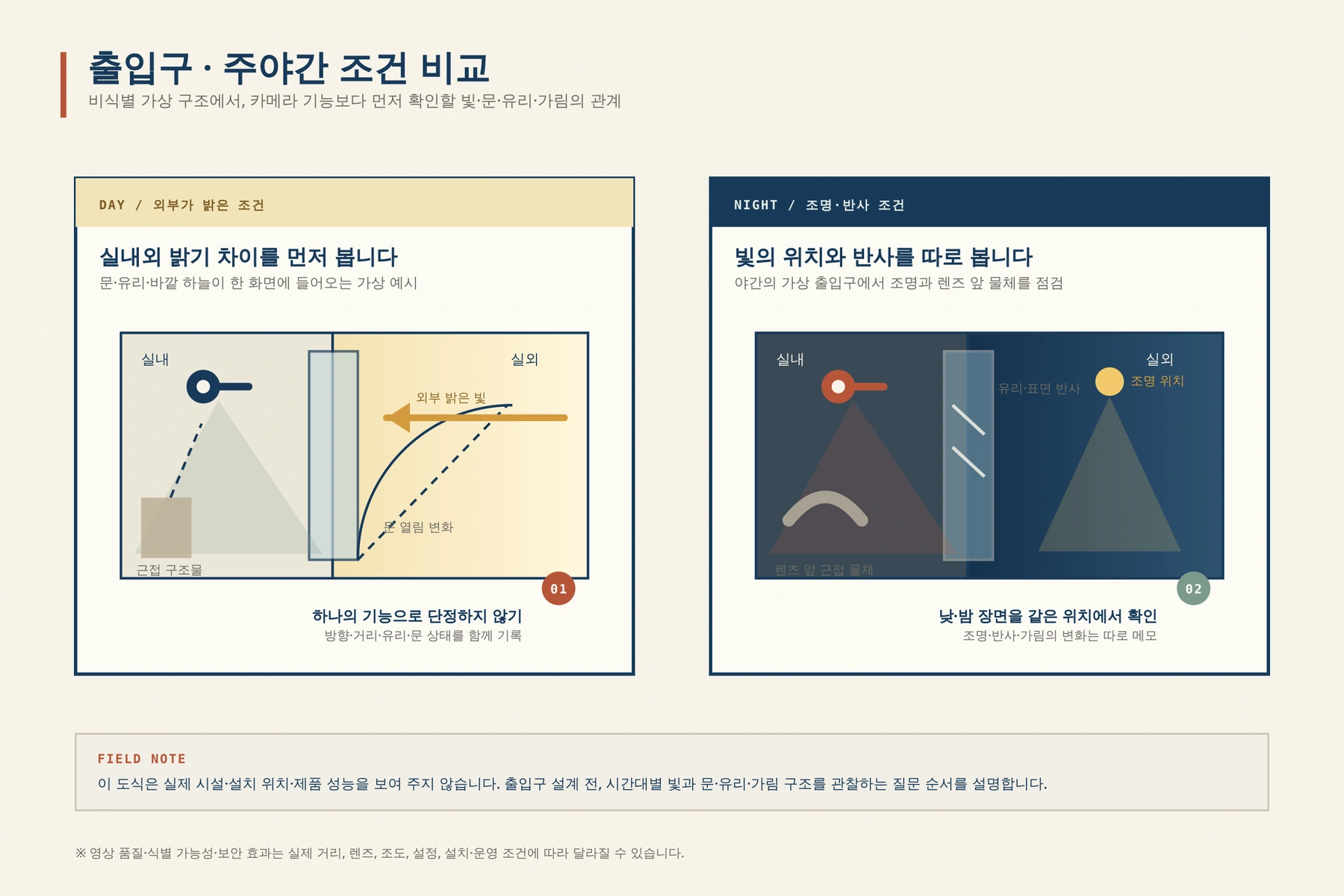

Map the door swing, glass, transom, canopy, daylight path, artificial lights, reflective floor, and the position of a person while the door opens. Consider a separate overview and detail role when one view cannot preserve both context and target detail. Include privacy masks, neighboring property, and access-control event timing in the same design record.
Keep the camera role connected to the network, power, recording, time, privacy, and maintenance path. A useful design explains what is intentionally included, what is masked or excluded, who owns the decision, and what failure would be visible to an operator.
Test the threshold during the hardest transition
Test people approaching from each direction, the door opening, a bright exterior, a dark interior, evening transition, headlights, rain or reflections, and normal movement. Review the recorded stream—not just live view—for facial or object detail, clipped highlights, shadow detail, blur, time, and search.
Record the observed condition, date, device or configuration reference, reviewer, unresolved limitation, and next action. A repeatable acceptance record is more useful than a generic promise that a camera, recorder, service, or analytic will work in every scene.
FIELD CHECKLIST
Record the result, not only the intention
- State whether the entrance task is context, direction, identification, access review, or a combination.
- Map door swing, glass, daylight, artificial light, reflections, canopy, and subject position.
- Separate overview and detail roles when one framing cannot preserve both tasks.
- Test approach direction, door movement, backlight, evening transition, headlights, and rain.
- Verify recorded detail, time, access events, masks, search, export, and evidence limits.
Sources to verify
- IEC 62676-1-1 official publication record
Use the official publication scope when converting video-surveillance requirements into project-specific tests.
- Axis Communications, IR in surveillance
First-party technical background for infrared, day/night switching, and reflection questions.
FAQ / LONG-TAIL QUESTIONS
Frequently asked questions
How do I stop entrance CCTV from showing a dark face?
Start with camera direction, target position, background brightness, door and glass conditions, and supplemental or controlled light. Test WDR and exposure settings on recorded footage at the real threshold; a feature label alone does not guarantee identification.
Should an entrance camera face inside or outside?
The direction follows the task. Face it toward the approach when arrival detail matters, toward the interior when the threshold or movement matters, or use separate roles when both tasks cannot be preserved in one view.
Does WDR solve every entrance backlight problem?
No. WDR can be part of the design, but angle, lens, exposure, motion, light position, reflections, and recorded compression also affect the result. Verify the target under the difficult transition.
