FIELD NOTE / LIGHTING CHANGE
Security Camera Lighting Change Test: Before-and-After Checklist
A security camera lighting change test should compare the same target before and after a fixture, sign, daylight, or exterior-lighting change while checking exposure, WDR, IR, reflections, motion, and recorded detail.
Updated 2026-09-01 · Field notes
- PURPOSE
- Replacing a light, adding a sign, changing a canopy, removing a fixture, or altering operating hours can change a camera result even when the camera and lens remain untouched. The new light may improve a target, create glare, change shadows, introduce flicker, or alter the point where day/night behavior switches.
- CONDITIONS
- For security camera lighting change test, write the scene purpose, target, distance, movement, lighting, obstruction, access boundary, and evidence limit before selecting a camera or changing a configuration. The same label can describe very different operating conditions. Choose a repeatable target and route, record the old light condition, time, weather, camera settings, and relevant recorder state, then compare the new condition. Review the background, target, reflection, shadow, color, motion blur, exposure, WDR, IR, privacy mask, analytics zone, and energy or maintenance implications. Change one factor at a time where practical.
- LIMITS
- This is a planning or editorial guide. It does not replace a site survey, current official source, legal review, or vendor acceptance test.
Treat a lighting change as a scene change
Replacing a light, adding a sign, changing a canopy, removing a fixture, or altering operating hours can change a camera result even when the camera and lens remain untouched. The new light may improve a target, create glare, change shadows, introduce flicker, or alter the point where day/night behavior switches.
For security camera lighting change test, write the scene purpose, target, distance, movement, lighting, obstruction, access boundary, and evidence limit before selecting a camera or changing a configuration. The same label can describe very different operating conditions.

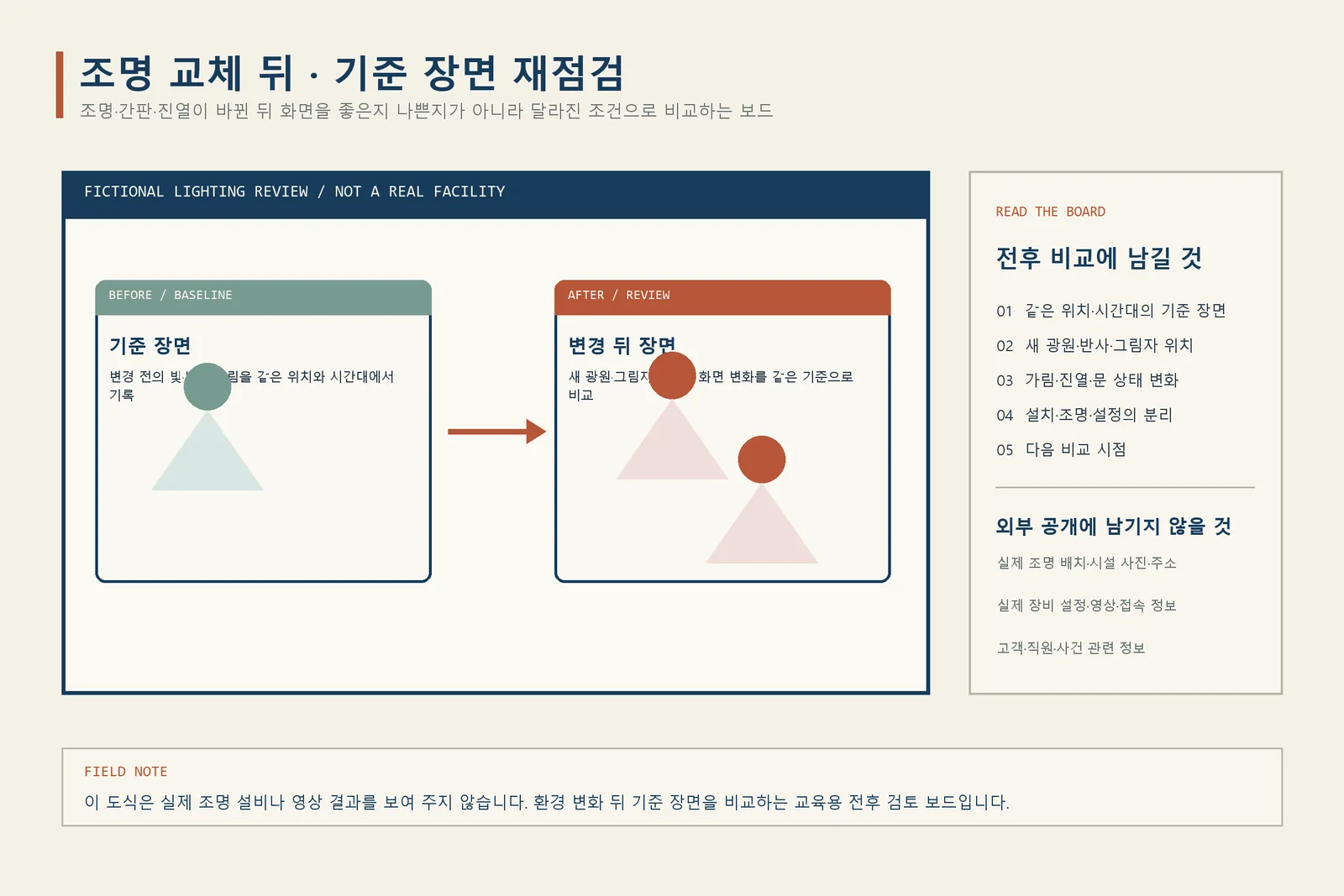

Use a before-and-after comparison record
Choose a repeatable target and route, record the old light condition, time, weather, camera settings, and relevant recorder state, then compare the new condition. Review the background, target, reflection, shadow, color, motion blur, exposure, WDR, IR, privacy mask, analytics zone, and energy or maintenance implications. Change one factor at a time where practical.
Keep the camera role connected to the network, power, recording, time, privacy, and maintenance path. A useful design explains what is intentionally included, what is masked or excluded, who owns the decision, and what failure would be visible to an operator.
Check live and recorded results after the change
Repeat the same movement and static target at the time of day that matters. Verify the recorded stream, not only live view, and document whether the change affected focus, detail, color, flicker, search, events, storage, or a neighboring camera. Leave unresolved causal questions open until the next controlled test.
Record the observed condition, date, device or configuration reference, reviewer, unresolved limitation, and next action. A repeatable acceptance record is more useful than a generic promise that a camera, recorder, service, or analytic will work in every scene.
FIELD CHECKLIST
Record the result, not only the intention
- Record the old and new fixture, sign, canopy, daylight, operating-hour, or exterior-lighting condition.
- Use the same target, route, time window, camera, settings, and recorder comparison where practical.
- Check glare, shadows, exposure, WDR, IR, flicker, color, focus, motion, privacy, and analytics zones.
- Compare live, recorded, searched, and exported results after the lighting change.
- Record what changed, what is not yet proven, who owns remediation, and when to recheck.
Sources to verify
- IEC 62676-1-1 official publication record
Use the official publication scope when converting video-surveillance requirements into project-specific tests.
- Axis Communications, IR in surveillance
First-party technical background for infrared, day/night switching, and reflection questions.
- Axis Communications, Bitrate control for IP video
First-party technical background for scene movement, bitrate, quality, storage, and network trade-offs.
FAQ / LONG-TAIL QUESTIONS
Frequently asked questions
Why should CCTV be retested after a lighting upgrade?
A new light changes contrast, shadows, color, reflections, motion visibility, exposure, WDR or IR behavior, and sometimes analytics. Retesting confirms the actual recorded scene rather than assuming the change improved it.
Can brighter lights make a security camera image worse?
Yes. A bright source can create glare, clip highlights, deepen shadows, reflect from glass or floors, or change exposure and motion behavior. Test the target and background at the real location.
What should be compared in a before-and-after CCTV test?
Compare the same target, movement, light period, camera settings, live and recorded image, focus, exposure, color, glare, motion blur, events, search, privacy masks, and storage or network effect.
