IR LED and IR-Cut Filter: Night Vision, Reflection and Day/Night Switching
An IR LED and IR-cut filter guide explains day/night switching, near-infrared illumination, glass and wall reflection, exposure, and why infrared capability does not guarantee a usable night scene.
Updated 2026-09-01 · Technology
- PURPOSE
- Many day/night cameras change how they receive light when ambient conditions fall. An IR-cut filter may move to allow more near-infrared energy, while an IR LED or external illuminator adds light. The result depends on where that light travels, what reflects it, the target's distance and movement, the lens cover, and the camera's processing and recording settings.
- CONDITIONS
- For IR LED and IR-cut, write the scene purpose, target, distance, movement, lighting, obstruction, access boundary, and evidence limit before selecting a camera or changing a configuration. The same label can describe very different operating conditions. Inspect glass, bright walls, metal, signs, eaves, rain, dust, spider webs, and nearby objects in front of the lens. Note whether the illuminator is built in or separate, whether it is aimed along the lens axis, and whether a person or vehicle moves into a different light zone. Treat color loss and IR switching as conditions to test, not as a feature guarantee.
- LIMITS
- This is a planning or editorial guide. It does not replace a site survey, current official source, legal review, or vendor acceptance test.
Night vision is a light-path problem
Many day/night cameras change how they receive light when ambient conditions fall. An IR-cut filter may move to allow more near-infrared energy, while an IR LED or external illuminator adds light. The result depends on where that light travels, what reflects it, the target's distance and movement, the lens cover, and the camera's processing and recording settings.
For IR LED and IR-cut, write the scene purpose, target, distance, movement, lighting, obstruction, access boundary, and evidence limit before selecting a camera or changing a configuration. The same label can describe very different operating conditions.

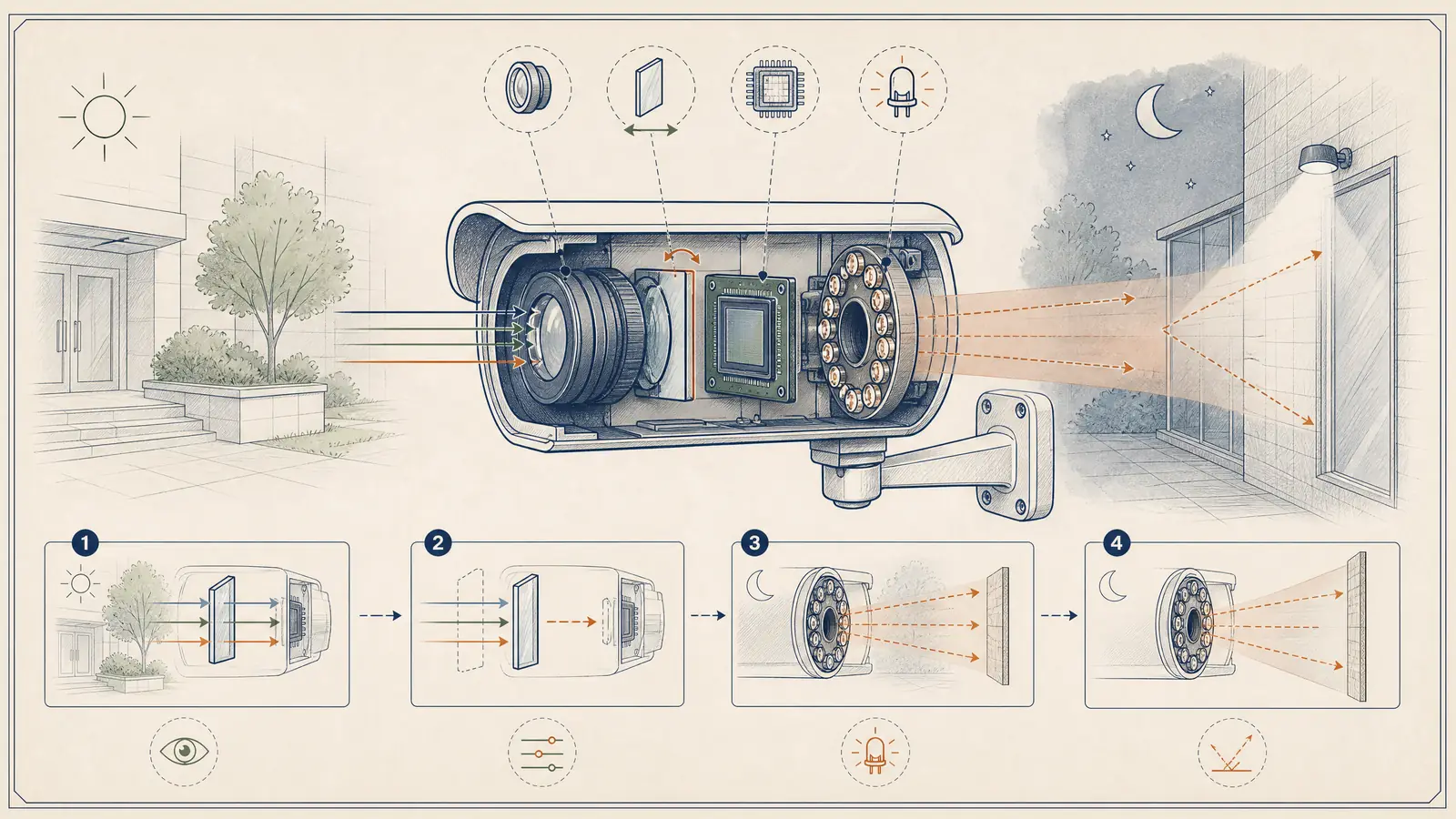

Map the reflection and illumination path
Inspect glass, bright walls, metal, signs, eaves, rain, dust, spider webs, and nearby objects in front of the lens. Note whether the illuminator is built in or separate, whether it is aimed along the lens axis, and whether a person or vehicle moves into a different light zone. Treat color loss and IR switching as conditions to test, not as a feature guarantee.
Keep the camera role connected to the network, power, recording, time, privacy, and maintenance path. A useful design explains what is intentionally included, what is masked or excluded, who owns the decision, and what failure would be visible to an operator.
Test dusk, darkness, and reflective scenes
Record a stationary and moving target during the transition to night, with headlights or expected exterior light where relevant. Check focus, target detail, reflection, exposure, motion blur, color transition, recorded stream, and the result after cleaning or repositioning. Document whether a supplemental light or a different camera position is an engineering change.
Record the observed condition, date, device or configuration reference, reviewer, unresolved limitation, and next action. A repeatable acceptance record is more useful than a generic promise that a camera, recorder, service, or analytic will work in every scene.
FIELD CHECKLIST
Record the result, not only the intention
- Record day, dusk, night, ambient light, target movement, and expected exterior-light conditions.
- Map glass, wall, metal, signs, eaves, rain, dirt, and near-lens objects that can reflect IR.
- Check built-in or external illuminator direction, target distance, focus, exposure, and motion.
- Compare live and recorded color transition, detail, glare, blur, search, and export.
- Document cleaning, repositioning, supplemental lighting, and unresolved night limitations.
Sources to verify
- Axis Communications, IR in surveillance
First-party technical background for infrared, day/night switching, and reflection questions.
- IEC 62676-1-1 official publication record
Use the official publication scope when converting video-surveillance requirements into project-specific tests.
FAQ / LONG-TAIL QUESTIONS
Frequently asked questions
What does an IR-cut filter do in a security camera?
In a typical day/night design it limits infrared during daytime color operation and changes state in low light so the sensor can use more near-infrared energy. Exact behavior is product-specific and should be verified in the device documentation and scene test.
Why does an IR security camera reflect at night?
Near-infrared light can return from glass, walls, metal, signs, eaves, rain, dirt, or an object close to the lens. Check the physical light path and recorded result rather than assuming the sensor is defective.
Does an IR LED guarantee clear night footage?
No. Usable night footage still depends on target distance, angle, movement, focus, exposure, reflection, weather, recording, and the amount and direction of light. Accept it at the actual scene.
