Bullet Camera Installation: Outdoor, Long-Axis and Night Conditions

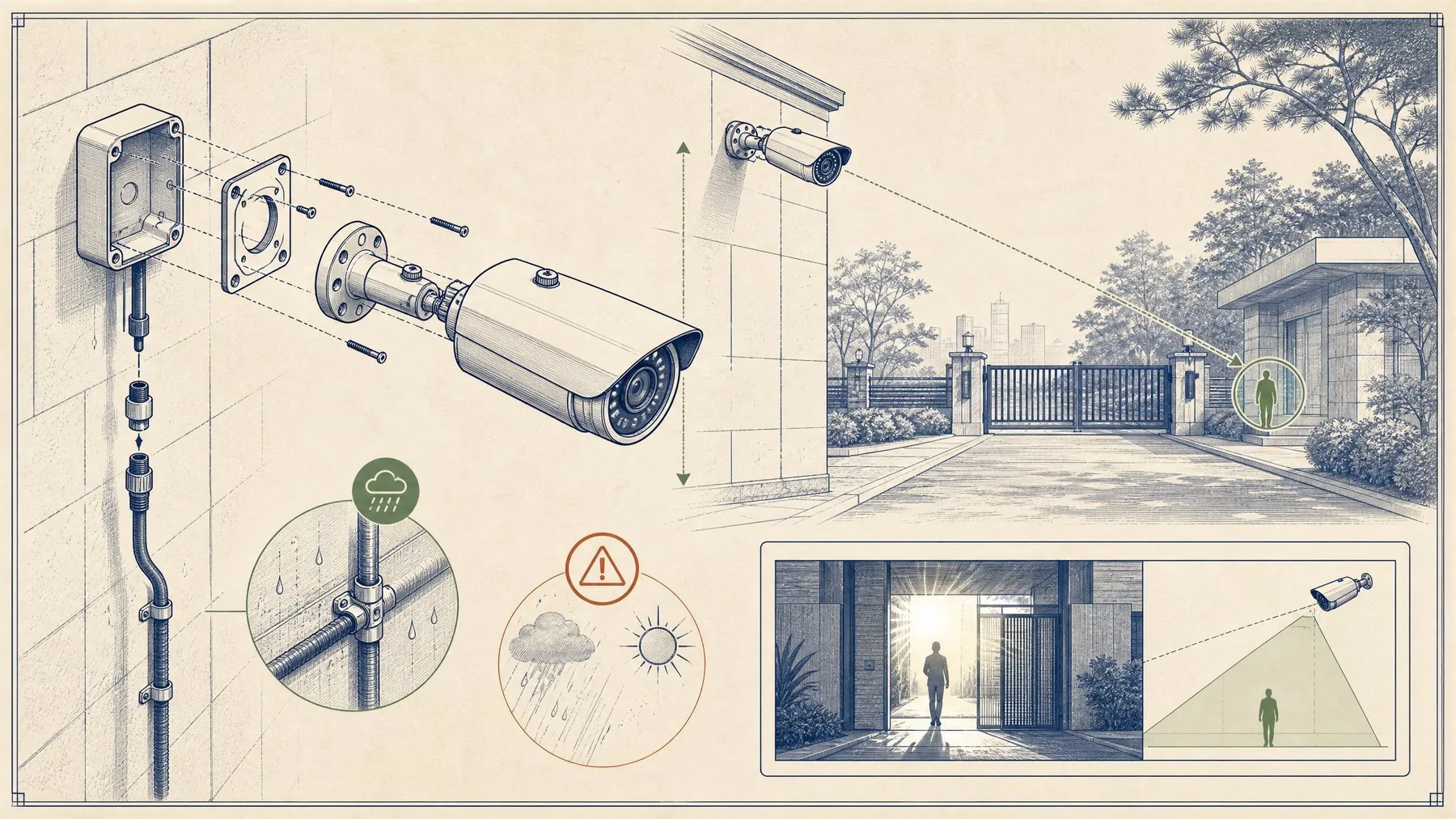

Bullet camera installation works best when the visible housing, long-axis view, mounting direction, weather, IR reflection, cable route, and maintenance access match the actual scene and security purpose.
Updated 2026-09-01 · CCTV design
- PURPOSE
- A bullet camera often makes its viewing direction obvious and can suit external walls, approaches, driveways, loading edges, or other scenes with a defined axis. The housing itself does not guarantee a useful image. The target distance, lens, sun path, weather, nearby surface, and ability to service the device determine whether the installation remains useful.
- CONDITIONS
- For bullet camera installation, write the scene purpose, target, distance, movement, lighting, obstruction, access boundary, and evidence limit before selecting a camera or changing a configuration. The same label can describe very different operating conditions. Record the bracket, wall or pole, cable entry, sun and rain direction, nearby eaves, reflective signs, vehicle lights, and the path a person or vehicle takes through the frame. Avoid pointing the IR or lens toward a nearby bright wall or glass without testing. Leave enough adjustment and maintenance access to recover focus and clean the front surface safely.
- LIMITS
- This is a planning or editorial guide. It does not replace a site survey, current official source, legal review, or vendor acceptance test.
Use the bullet form for a defined axis
A bullet camera often makes its viewing direction obvious and can suit external walls, approaches, driveways, loading edges, or other scenes with a defined axis. The housing itself does not guarantee a useful image. The target distance, lens, sun path, weather, nearby surface, and ability to service the device determine whether the installation remains useful.
For bullet camera installation, write the scene purpose, target, distance, movement, lighting, obstruction, access boundary, and evidence limit before selecting a camera or changing a configuration. The same label can describe very different operating conditions.
Check the axis, environment, and reflection path
Record the bracket, wall or pole, cable entry, sun and rain direction, nearby eaves, reflective signs, vehicle lights, and the path a person or vehicle takes through the frame. Avoid pointing the IR or lens toward a nearby bright wall or glass without testing. Leave enough adjustment and maintenance access to recover focus and clean the front surface safely.
Keep the camera role connected to the network, power, recording, time, privacy, and maintenance path. A useful design explains what is intentionally included, what is masked or excluded, who owns the decision, and what failure would be visible to an operator.
Test beyond the daytime screenshot
Accept a bullet installation during the day, at dusk, at night, and under expected weather or vehicle-light conditions. Check target detail at the working distance, movement blur, IR reflection, focus, image orientation, privacy boundary, recorded playback, cable and seal condition, and the time needed for an authorized service visit.
Record the observed condition, date, device or configuration reference, reviewer, unresolved limitation, and next action. A repeatable acceptance record is more useful than a generic promise that a camera, recorder, service, or analytic will work in every scene.
FIELD CHECKLIST
Record the result, not only the intention
- State the long-axis scene, target distance, approach direction, and required image task.
- Check bracket, wall or pole, cable entry, sun, rain, eave, glass, signs, and nearby reflective surfaces.
- Test lens, focus, IR, motion, headlights, weather, privacy masks, and recorded detail.
- Document adjustment, cleaning, safe access, replacement, and cable or seal inspection steps.
- Record the actual model, lens, firmware, scene condition, result, and unresolved blind spot.
Sources to verify
- IEC 62676-1-1 official publication record
Use the official publication scope when converting video-surveillance requirements into project-specific tests.
- Axis Communications, IR in surveillance
First-party technical background for infrared, day/night switching, and reflection questions.
- Axis Communications, Lenses in surveillance
First-party technical background for interpreting lens, sensor, field-of-view, and scene conditions.
FAQ / LONG-TAIL QUESTIONS
Frequently asked questions
Where should a bullet security camera be installed?
Install it where the defined target travels through a usable axis and where mounting, light, weather, cable entry, privacy, and maintenance conditions can be controlled. Confirm the target distance and angle with a site test.
Are bullet cameras good for outdoor security?
They can be suitable for some outdoor scenes when the exact housing, mounting, weather exposure, lens, IR, drainage, cable entry, and service conditions are appropriate. The form factor alone is not an outdoor rating or performance guarantee.
Why does an outdoor bullet camera show a bright white patch at night?
IR or another light source may be reflecting from a nearby wall, eave, glass, sign, rain, dirt, or the camera cover. Check the reflection path, position, cleanliness, settings, and recorded result at the real site.
