DESIGN / CAMERA FORM FACTORS
Dome, Bullet and Turret Camera Installation Conditions
Dome, bullet, and turret camera installation should be chosen from scene direction, environmental exposure, service access, glare, vandalism risk, and cable entry—not from the housing name alone.
Updated 2026-09-01 · CCTV design
- PURPOSE
- Dome, bullet, and turret labels describe physical arrangements and common installation patterns, not a universal performance ranking. A dome may suit a protected ceiling or a discreet direction, a bullet may simplify a visible long-axis view or external mounting, and a turret may make lens adjustment and cleaning more direct. Each choice changes access, reflection, cable entry, and maintenance questions.
- CONDITIONS
- For dome bullet turret camera installation, write the scene purpose, target, distance, movement, lighting, obstruction, access boundary, and evidence limit before selecting a camera or changing a configuration. The same label can describe very different operating conditions. Record the mounting surface, camera direction, weather exposure, sun path, nearby wall or soffit, vandalism risk, cable route, cleaning access, and adjustment method. Check whether a cover, bubble, bracket, or junction box can introduce glare or block the lens. Include safe access and future replacement in the design rather than treating installation as finished when live video appears.
- LIMITS
- This is a planning or editorial guide. It does not replace a site survey, current official source, legal review, or vendor acceptance test.
Treat form factor as an installation decision

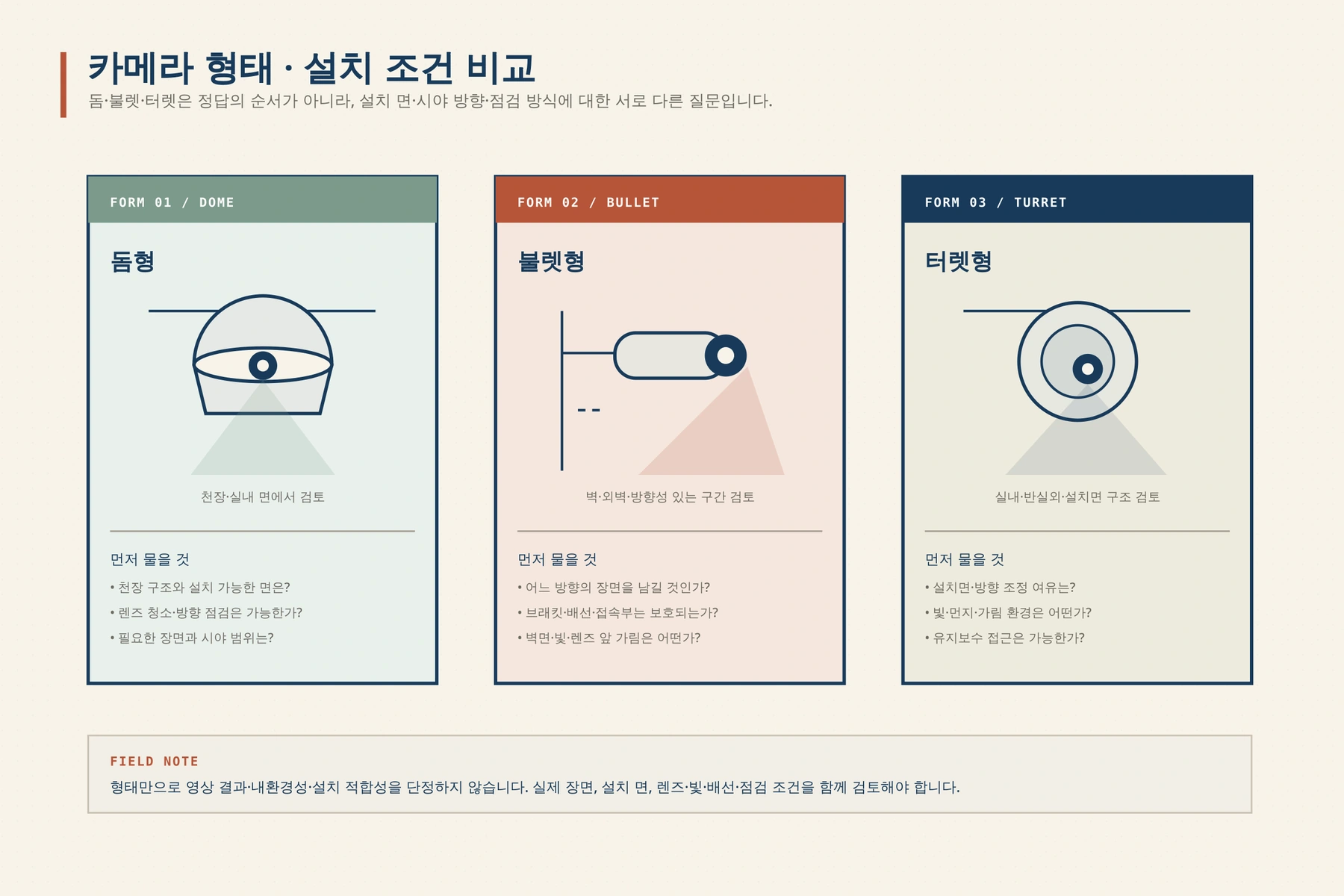

Dome, bullet, and turret labels describe physical arrangements and common installation patterns, not a universal performance ranking. A dome may suit a protected ceiling or a discreet direction, a bullet may simplify a visible long-axis view or external mounting, and a turret may make lens adjustment and cleaning more direct. Each choice changes access, reflection, cable entry, and maintenance questions.
For dome bullet turret camera installation, write the scene purpose, target, distance, movement, lighting, obstruction, access boundary, and evidence limit before selecting a camera or changing a configuration. The same label can describe very different operating conditions.
Match the housing to the scene and service path
Record the mounting surface, camera direction, weather exposure, sun path, nearby wall or soffit, vandalism risk, cable route, cleaning access, and adjustment method. Check whether a cover, bubble, bracket, or junction box can introduce glare or block the lens. Include safe access and future replacement in the design rather than treating installation as finished when live video appears.
Keep the camera role connected to the network, power, recording, time, privacy, and maintenance path. A useful design explains what is intentionally included, what is masked or excluded, who owns the decision, and what failure would be visible to an operator.
Accept the view, enclosure, and maintenance behavior together
Inspect the selected form factor in its real day, night, rain, temperature, and lighting conditions. Test image detail, IR or reflection behavior, focus, position retention, cable and seal condition, service access, privacy mask, and the time required to replace or clean the unit under the site's safety procedure.
Record the observed condition, date, device or configuration reference, reviewer, unresolved limitation, and next action. A repeatable acceptance record is more useful than a generic promise that a camera, recorder, service, or analytic will work in every scene.
FIELD CHECKLIST
Record the result, not only the intention
- Record scene direction, mounting surface, weather, sun, nearby surfaces, and vandalism exposure.
- Compare dome, bullet, and turret access for adjustment, cleaning, cable entry, and replacement.
- Check cover, bubble, bracket, junction box, glare, IR reflection, and privacy boundaries.
- Document safe maintenance access and the future device or firmware replacement path.
- Accept image, environmental, physical, and service behavior at the actual installation.
Sources to verify
- IEC 62676-1-1 official publication record
Use the official publication scope when converting video-surveillance requirements into project-specific tests.
- Axis Communications, Lenses in surveillance
First-party technical background for interpreting lens, sensor, field-of-view, and scene conditions.
- Axis Communications, IR in surveillance
First-party technical background for infrared, day/night switching, and reflection questions.
FAQ / LONG-TAIL QUESTIONS
Frequently asked questions
Are dome cameras better than bullet cameras?
Neither form factor is universally better. Select from the scene direction, mounting, environmental exposure, glare, vandalism risk, service access, cable path, and the image task that must be accepted at the site.
When is a turret camera useful?
A turret can be useful when direct lens adjustment, a clear external view, and accessible service are important. Confirm the exact environmental, mounting, glare, and maintenance conditions rather than selecting it from the name alone.
Does a camera housing determine image quality?
No. Image result also depends on lens, sensor, light, angle, motion, exposure, processing, compression, installation, and recording. Housing affects environmental and service conditions that can change the result over time.
