DESIGN / SELECTION FRAMEWORK

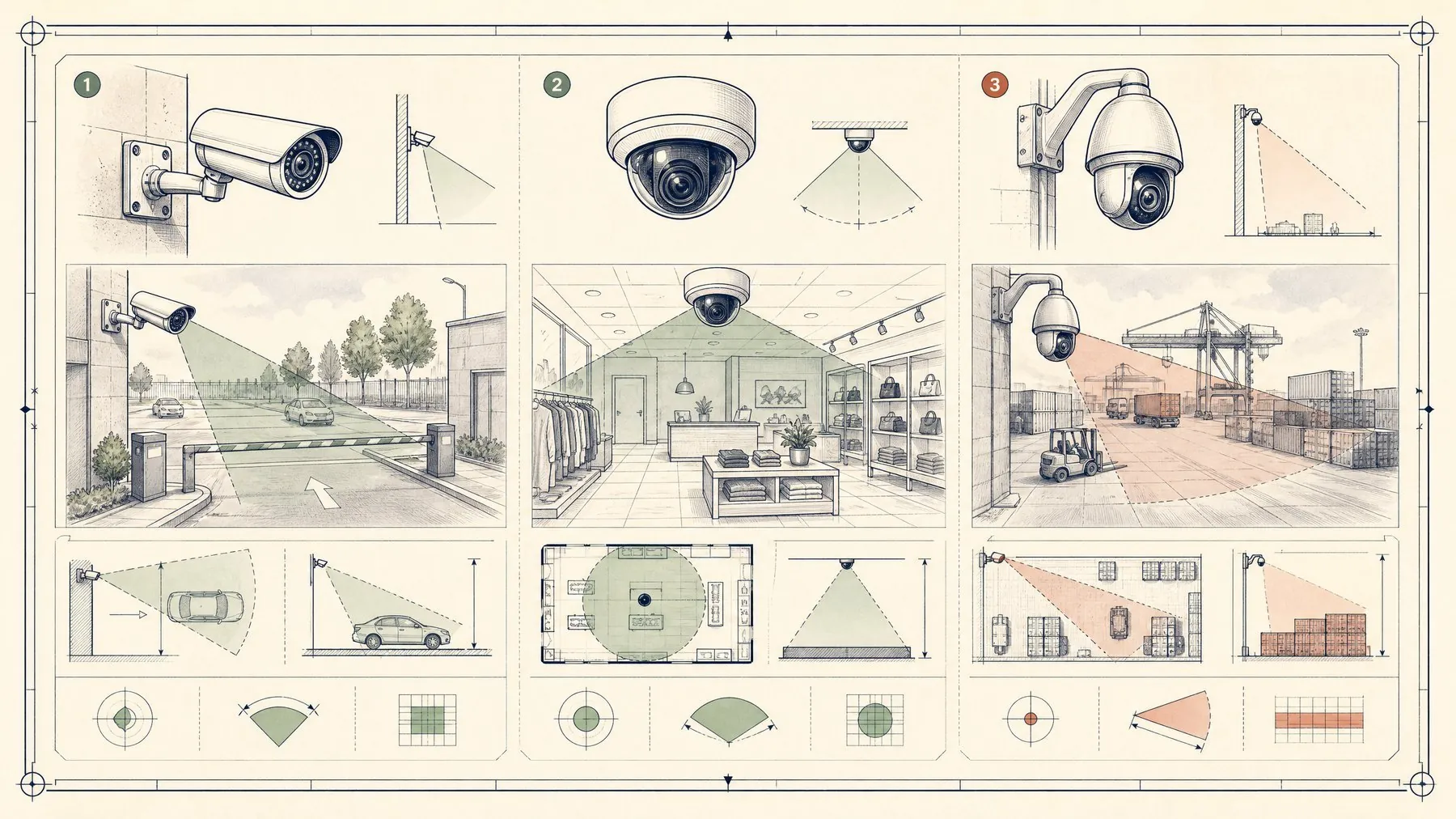

How to Choose a Security Camera: Start With the Scene Purpose
How to choose a security camera starts with the scene decision—observe, detect, recognize, identify, read, or investigate—then maps that task to distance, light, movement, network, storage, privacy, and acceptance.
Updated 2026-09-01 · CCTV design
- PURPOSE
- Camera selection becomes clearer when the team states what a reviewer must decide from the video. An overview may show that movement occurred, a detection view may show an object entered a zone, a recognition view may support a familiar subject, and an identification or plate-reading view needs a more constrained target and test. These tasks should not be hidden behind a resolution or AI label.
- CONDITIONS
- For how to choose a security camera, write the scene purpose, target, distance, movement, lighting, obstruction, access boundary, and evidence limit before selecting a camera or changing a configuration. The same label can describe very different operating conditions. For every camera group, record the target, distance, approach direction, height, angle, movement, light, weather, obstruction, required pixels or visual detail, recording mode, and operator workflow. Add network, PoE, storage, time, privacy, maintenance, and supplier questions so selection includes the lifecycle rather than only the camera body.
- LIMITS
- This is a planning or editorial guide. It does not replace a site survey, current official source, legal review, or vendor acceptance test.
Name the decision before the device
Camera selection becomes clearer when the team states what a reviewer must decide from the video. An overview may show that movement occurred, a detection view may show an object entered a zone, a recognition view may support a familiar subject, and an identification or plate-reading view needs a more constrained target and test. These tasks should not be hidden behind a resolution or AI label.
For how to choose a security camera, write the scene purpose, target, distance, movement, lighting, obstruction, access boundary, and evidence limit before selecting a camera or changing a configuration. The same label can describe very different operating conditions.
Translate purpose into measurable scene conditions
For every camera group, record the target, distance, approach direction, height, angle, movement, light, weather, obstruction, required pixels or visual detail, recording mode, and operator workflow. Add network, PoE, storage, time, privacy, maintenance, and supplier questions so selection includes the lifecycle rather than only the camera body.
Keep the camera role connected to the network, power, recording, time, privacy, and maintenance path. A useful design explains what is intentionally included, what is masked or excluded, who owns the decision, and what failure would be visible to an operator.
Make the selection earn acceptance
Create a short site or proof-of-concept test with the real target and difficult condition. Check live and recorded detail, focus, motion blur, glare, low light, analytic behavior if used, search, export, access, and the limit of what the image can establish. Record the exact model, lens, firmware, settings, and test conditions.
Record the observed condition, date, device or configuration reference, reviewer, unresolved limitation, and next action. A repeatable acceptance record is more useful than a generic promise that a camera, recorder, service, or analytic will work in every scene.
FIELD CHECKLIST
Record the result, not only the intention
- State the scene decision: observe, detect, recognize, identify, read, or investigate.
- Record target, distance, direction, height, angle, movement, light, weather, obstruction, and detail.
- Map lens, sensor, housing, IR or lighting, network, PoE, storage, time, and privacy conditions.
- Separate manufacturer claims, planning estimates, and observed site or proof-of-concept results.
- Define acceptance evidence, failure limits, owner, and the change or replacement path.
Sources to verify
- IEC 62676-1-1 official publication record
Use the official publication scope when converting video-surveillance requirements into project-specific tests.
- NIST SP 800-213 IoT device cybersecurity guidance
A procurement and lifecycle reference for connected cameras, recorders, and related devices.
- CISA Secure by Demand Guide
Buyer-oriented questions for evaluating product-security maturity before and during procurement.
FAQ / LONG-TAIL QUESTIONS
Frequently asked questions
How do I choose the right security camera?
Start with the scene decision and target conditions, then select lens, sensor, form factor, light, analytics, network, storage, privacy, and service characteristics. Confirm the choice with a real or representative acceptance test.
Is higher resolution always better for security cameras?
No. Higher resolution can distribute pixels over a wider scene and increase storage or network demand. Target distance, lens, angle, light, motion, focus, compression, and the required task determine usable detail.
What should be in a camera selection checklist?
Include purpose, target, distance, movement, light, angle, lens, sensor, housing, network, PoE, storage, time, privacy, analytics, support, firmware, acceptance tests, and the evidence limit.
