WDR Backlight Exposure Guide for Security Cameras
A WDR backlight exposure guide explains how bright backgrounds, dark subjects, shutter, gain, motion, reflections, and recorded compression interact in entrance and mixed-light scenes.
Updated 2026-09-01 · Technology
- PURPOSE
- Wide dynamic range can help a camera handle a scene with bright and dark parts, but the result still depends on target position, movement, lens, exposure, shutter, gain, reflections, processing, and the recorded stream. A WDR label does not tell you whether a face, plate, package, or doorway will remain useful in the actual backlight.
- CONDITIONS
- For WDR backlight exposure, write the scene purpose, target, distance, movement, lighting, obstruction, access boundary, and evidence limit before selecting a camera or changing a configuration. The same label can describe very different operating conditions. Identify the bright source, the target, the background, and the movement path. Check whether a person crosses from bright exterior to dark interior, whether headlights enter the frame, whether glass or polished surfaces reflect, and whether a slower exposure creates blur. Keep the required evidence task visible while tuning the scene.
- LIMITS
- This is a planning or editorial guide. It does not replace a site survey, current official source, legal review, or vendor acceptance test.
WDR is part of the exposure decision
Wide dynamic range can help a camera handle a scene with bright and dark parts, but the result still depends on target position, movement, lens, exposure, shutter, gain, reflections, processing, and the recorded stream. A WDR label does not tell you whether a face, plate, package, or doorway will remain useful in the actual backlight.
For WDR backlight exposure, write the scene purpose, target, distance, movement, lighting, obstruction, access boundary, and evidence limit before selecting a camera or changing a configuration. The same label can describe very different operating conditions.
Separate highlights, shadows, and motion

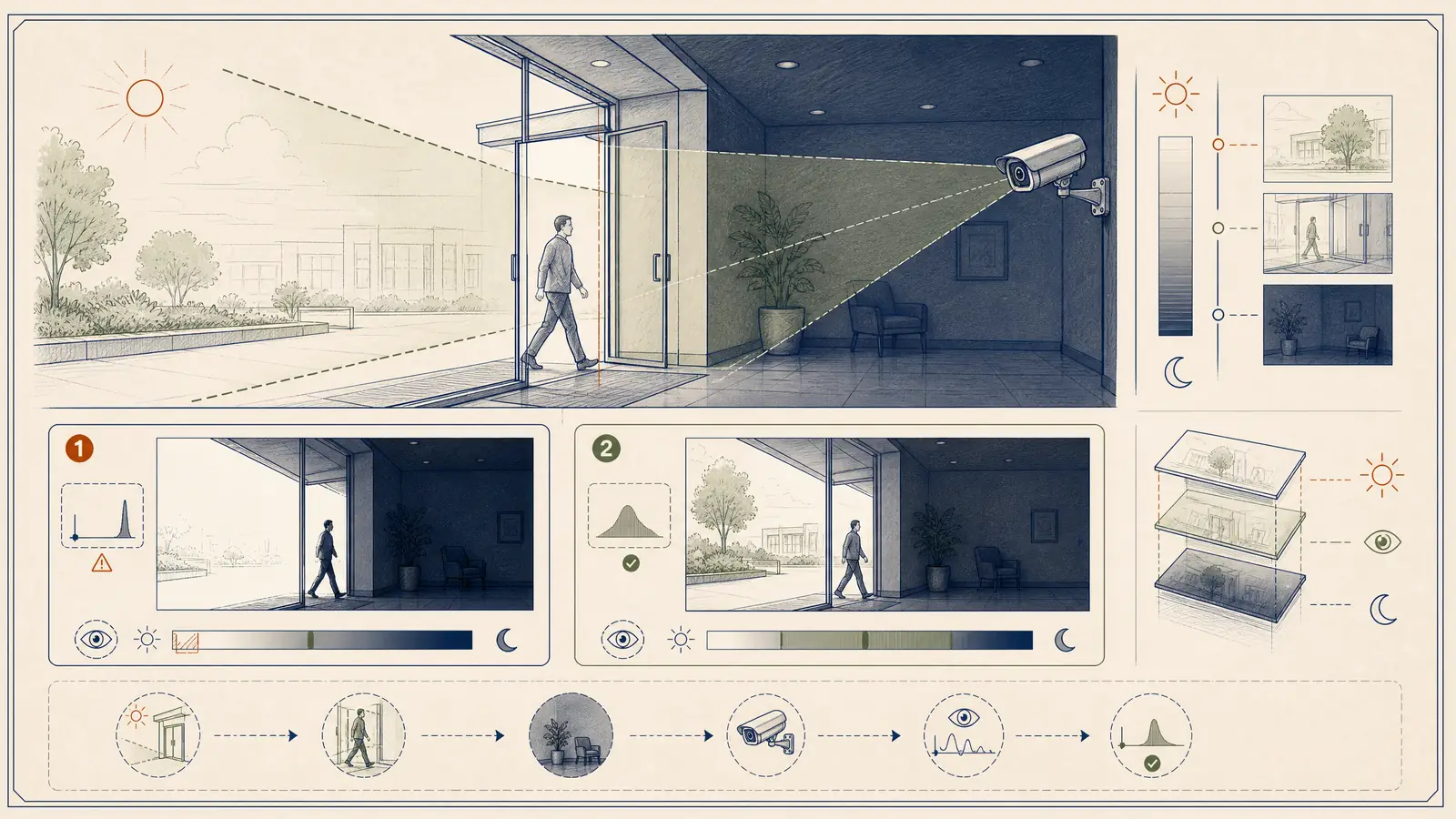

Identify the bright source, the target, the background, and the movement path. Check whether a person crosses from bright exterior to dark interior, whether headlights enter the frame, whether glass or polished surfaces reflect, and whether a slower exposure creates blur. Keep the required evidence task visible while tuning the scene.
Keep the camera role connected to the network, power, recording, time, privacy, and maintenance path. A useful design explains what is intentionally included, what is masked or excluded, who owns the decision, and what failure would be visible to an operator.
Accept WDR on difficult recorded footage
Run the same target through bright-background, shaded, evening, and headlight conditions. Compare highlight clipping, shadow detail, color, motion blur, focus, WDR settings, bitrate, live view, recorded playback, and export. Record a failed condition rather than hiding it with a generic image-quality score.
Record the observed condition, date, device or configuration reference, reviewer, unresolved limitation, and next action. A repeatable acceptance record is more useful than a generic promise that a camera, recorder, service, or analytic will work in every scene.
FIELD CHECKLIST
Record the result, not only the intention
- Mark bright source, target, background, movement path, glass, reflection, and required evidence detail.
- Separate WDR, exposure, shutter, gain, lens, focus, light, processing, and recording questions.
- Test static and moving targets through the real backlight and transition conditions.
- Compare highlights, shadows, color, blur, live view, recorded stream, search, and export.
- Record the accepted condition, failed condition, setting reference, and next adjustment owner.
Sources to verify
- IEC 62676-1-1 official publication record
Use the official publication scope when converting video-surveillance requirements into project-specific tests.
- Axis Communications, Lenses in surveillance
First-party technical background for interpreting lens, sensor, field-of-view, and scene conditions.
FAQ / LONG-TAIL QUESTIONS
Frequently asked questions
Does WDR make a security camera work in any backlight?
No. WDR is one part of the image pipeline. Camera position, target angle, lens, exposure, shutter, movement, reflections, processing, and recorded compression still determine the observed result.
Why is a face still dark with WDR enabled?
The target may be too small, moving, outside the useful angle, behind a reflection, or affected by exposure and light conditions that WDR cannot solve alone. Test the target at the actual distance and recorded stream.
How should WDR be tested before CCTV acceptance?
Test static and moving targets under bright-background, shaded, dusk, and headlight conditions, then review highlight detail, shadow detail, blur, focus, live and recorded video, search, and export.
